PEDOT:PSS Transparent Electrodes in Organic Solar Cells: Recent Advances, Optimization Strategies, and Performance Benchmarks

Abstract

This article provides a comprehensive analysis of poly(3,4-ethylenedioxythiophene):poly(styrenesulfonate) (PEDOT:PSS) as a transparent conducting electrode (TCE) in organic solar cells (OSCs). Aimed at researchers and material scientists, we explore the fundamental properties and working mechanisms of PEDOT:PSS, detailing current deposition and patterning methodologies. The core of the discussion addresses critical challenges such as conductivity enhancement, environmental stability, and interfacial engineering. We further validate its application through direct performance comparisons with traditional TCEs like ITO and emerging alternatives, presenting key metrics on power conversion efficiency, mechanical flexibility, and cost-effectiveness. This review synthesizes the latest research to guide material selection and processing optimization for next-generation, flexible, and large-area OSC devices.

Unlocking PEDOT:PSS: The Conductive Polymer Revolutionizing Transparent Electrodes

Application Notes

Transparent electrodes (TEs) are critical components in organic solar cells (OSCs), serving as the charge-collecting interface and photon-entry window. The performance of TEs directly dictates the power conversion efficiency (PCE) and stability of the OSC device. The primary figure of merit is the trade-off between high optical transparency (low absorption/scattering) and high electrical conductivity (low sheet resistance). While indium tin oxide (ITO) is the conventional benchmark, its brittleness, cost, and scarcity have driven research into alternatives. In the context of a thesis focused on PEDOT:PSS, it emerges as a leading conductive polymer candidate for solution-processable, flexible, and ITO-free OSCs. Its role extends beyond simple charge collection; its work function, surface energy, and chemical compatibility significantly influence active layer morphology, interfacial charge transport, and overall device stability.

Comparative Analysis of Common Transparent Electrodes

The following table summarizes key performance metrics for various transparent electrode materials relevant to OSC research.

Table 1: Comparative Performance Metrics of Transparent Electrode Materials

Electrode Material	Typical Sheet Resistance (Ω/sq)	Avg. Transmittance (400-800 nm)	Flexibility	Process Method	Key Advantages	Key Challenges for OSCs
ITO (Reference)	10-15	>85%	Poor (brittle)	Sputtering	Excellent optoelectronic trade-off	Brittle, expensive, high-temperature processing
PEDOT:PSS (PH1000)	50-100 (pristine); <50 (modified)	85-95%	Excellent	Solution-processing (spin/inkjet)	High flexibility, low-temp processing, tunable WF	Hygroscopic, acidic (degrades ITO), inhomogeneous conductivity
Ag Nanowires	15-30	>90%	Excellent	Solution-processing	High conductivity, good flexibility	Nanowire junction resistance, roughness, oxidation
Carbon Nanotubes	60-150	~90%	Excellent	Solution-processing	Excellent chemical/mechanical stability	High junction resistance, purity-dependent performance
Graphene	100-500 (CVD); >1000 (solution)	>90%	Excellent	CVD / Transfer	Ultra-high mobility, chemical inertness	High sheet resistance (esp. solution), complex transfer
Metal Grids (e.g., Ag)	<10	80-90% (with filler)	Good	Lithography/Printing	Very low resistance	Complex patterning, shadow loss, cost

PEDOT:PSS as a Model Transparent Electrode: Functional Considerations

For OSC applications, PEDOT:PSS is not merely a passive conductor. Its properties must be engineered:

• Conductivity Enhancement: Pristine PEDOT:PSS films have insufficient conductivity. Post-treatment with high-boiling-point solvents (e.g., dimethyl sulfoxide, ethylene glycol) or acids (e.g., sulfuric acid) induces phase separation and conformational changes, boosting conductivity by orders of magnitude.
• Work Function (WF) Alignment: The WF of PEDOT:PSS (~4.9-5.2 eV) is suitable for use as an anode (hole-collecting layer). For use as a cathode, its WF must be lowered via interfacial modification, e.g., with polyethyleneimine (PEI).
• Surface Morphology: A smooth, uniform surface is crucial for depositing subsequent organic layers and preventing shunts. Filtering and optimal spin-coating protocols are essential.
• Stability: The acidic and hygroscopic nature of PEDOT:PSS can corrode ITO and degrade the OSC under operational stress. Neutralization strategies and barrier layers are an active research area.

Experimental Protocols

Protocol 1: Preparation and Conductivity Enhancement of PEDOT:PSS Transparent Electrodes

Objective: To fabricate a highly conductive, transparent PEDOT:PSS film on a glass substrate for use as an OSC anode.

Materials:

• PEDOT:PSS aqueous dispersion (e.g., Clevios PH1000)
• High-boiling-point additive: Dimethyl sulfoxide (DMSO) or Ethylene Glycol (EG)
• Surfactant: Capstone FS-30 (optional, for wetting)
• Substrate: Pre-cleaned glass or flexible PET/ITO-glass
• Syringe filter (0.45 µm PVDF)
• Spin coater
• Hotplate

Procedure:

• Solution Preparation: Mix PEDOT:PSS PH1000 dispersion with 5-7% v/v DMSO (or 5% v/v EG). Add 0.1% v/v FS-30 surfactant if coating on hydrophobic flexible substrates. Stir the mixture for at least 2 hours at room temperature.
• Filtration: Filter the solution through a 0.45 µm PVDF syringe filter directly before coating to remove aggregates.
• Substrate Preparation: Clean glass substrates with sequential sonication in detergent, deionized water, acetone, and isopropanol (15 min each). Dry with nitrogen gas and treat with UV-Ozone for 15-20 minutes.
• Film Deposition: Dispense the filtered PEDOT:PSS solution onto the substrate. Spin-coat at 3000-5000 rpm for 30-60 seconds to achieve a target thickness of 30-50 nm.
• Annealing for Conductivity: Immediately transfer the wet film to a pre-heated hotplate. Anneal at 120-140°C for 15-20 minutes in air. For maximum conductivity enhancement, a secondary annealing step at a higher temperature (e.g., 180°C for 10 min) may be performed.
• Characterization: Measure sheet resistance (Rs) using a four-point probe. Measure optical transmittance (T) with a UV-Vis spectrophotometer. Calculate the Figure of Merit (FoM = T¹⁰ / Rs).

Protocol 2: Fabrication of an ITO-free OSC with PEDOT:PSS Anode

Objective: To construct a standard bulk-heterojunction OSC using a PEDOT:PSS transparent electrode as the anode.

Materials:

• Prepared PEDOT:PSS/Glass substrate (from Protocol 1)
• Active Layer Materials: e.g., PBDB-T-2F (polymer donor) and IT-4F (non-fullerene acceptor)
• Solvent: Chloroform
• Additive: 1-Chloronaphthalene (CN)
• Electron Transport Layer (ETL): e.g., ZnO nanoparticles or PFN-Br
• Top Cathode: Ag or Al
• Thermal evaporator with shadow mask
• Nitrogen glovebox

Procedure:

• Glovebox Transfer: Transfer the annealed PEDOT:PSS/Glass substrate into a nitrogen-filled glovebox (H₂O, O₂ < 0.1 ppm).
• Active Layer Solution Preparation: Dissolve PBDB-T-2F and IT-4F in chloroform at a total concentration of 20 mg/mL with a donor:acceptor weight ratio of 1:1.2. Add 0.5% v/v CN as a processing additive. Stir on a hotplate at 50°C overnight.
• Active Layer Deposition: Spin-coat the active layer solution onto the PEDOT:PSS film at 2500-3000 rpm for 30 seconds to form a ~100 nm film. Allow the film to dry slowly under a covered petri dish for 10 minutes.
• Electron Transport Layer (ETL) Deposition:
  • Option A (ZnO): Spin-coat a ZnO nanoparticle solution at 3000 rpm for 30s, anneal at 100°C for 10 min.
  • Option B (PFN-Br): Spin-coat a 0.5 mg/mL PFN-Br in methanol solution at 3000 rpm for 30s.
• Top Electrode Evaporation: Transfer the substrate into a thermal evaporation chamber (inside the glovebox). Evaporate a 100 nm layer of silver or aluminum through a shadow mask at a base pressure < 5x10⁻⁶ mbar to define the active area (e.g., 0.04-0.1 cm²).
• Device Encapsulation: Encapsulate the finished device immediately using a glass cover slip and UV-curable epoxy to prevent degradation.
• Device Testing: Characterize current density-voltage (J-V) characteristics under AM 1.5G simulated solar illumination (100 mW/cm²) using a calibrated solar simulator and source measure unit.

Diagrams

Title: Fabrication Workflow for PEDOT:PSS-Based OSC

Title: Charge Flow & Function of PEDOT:PSS TE in OSC Stack

The Scientist's Toolkit

Table 2: Essential Research Reagent Solutions for PEDOT:PSS TE Research

Item Name	Function in Experiment	Key Notes for Use
PEDOT:PSS Dispersion (Clevios PH1000)	The core conductive polymer material for forming the transparent electrode.	High-conductivity grade. Store at 4-8°C. Bring to room temp and vortex before use.
Dimethyl Sulfoxide (DMSO)	Secondary dopant/solvent additive. Improves conductivity by re-ordering PEDOT chains.	Typically used at 5-7% v/v. High boiling point (189°C). Handle with gloves in fume hood.
Ethylene Glycol (EG)	Alternative conductivity-enhancing agent. Functions similarly to DMSO.	Used at ~5% v/v. Also high boiling point (197°C).
Capstone FS-30 / Zonyl	Fluorosurfactant. Improves wetting and film formation on hydrophobic substrates (e.g., PET).	Use at very low concentrations (0.05-0.2% v/v). Excess can harm conductivity.
Polyethylenimine (PEI), Ethoxylated (PEIE)	Interfacial layer material. Lowers the work function of PEDOT:PSS for use as a cathode.	Typically spin-coated from 0.1% wt in 2-methoxyethanol.
Zinc Oxide (ZnO) Nanoparticle Solution	Common electron transport layer (ETL) for inverted structure OSCs.	Deposited on top of PEDOT:PSS cathode or atop active layer. Requires UV exposure or thermal annealing.
UV-Ozone Cleaner	Surface treatment tool. Increases substrate surface energy, removes organics, improves film adhesion.	Standard treatment: 15-20 minutes. Over-treatment can damage some flexible substrates.
Four-Point Probe Station	Essential for measuring the sheet resistance (Rs) of transparent conductive films.	Calibrate with a standard film. Ensure good contact with probes.

PEDOT:PSS is a conductive polymer complex, poly(3,4-ethylenedioxythiophene) polystyrene sulfonate, and a cornerstone material in organic electronics research. Within the context of its application as a transparent electrode in Organic Solar Cells (OSCs), its role is critical for enabling flexible, semi-transparent, and cost-effective photovoltaic devices. This article details its fundamental properties, synthesis, and relevant application protocols.

Chemical Structure and Intrinsic Properties

PEDOT:PSS consists of two ionically bonded components:

• PEDOT: A conjugated polymer (polycation) responsible for hole conductivity. Its planar structure allows for efficient charge delocalization.
• PSS: A polyanionic polymer (polystyrene sulfonate) that serves as a charge-balancing dopant and dispersing agent, enabling the complex to be processed in aqueous solutions.

The PSS surrounds the PEDOT-rich grains, stabilizing the dispersion. Electrical conduction occurs via hopping of charge carriers between localized states in PEDOT-rich domains.

Table 1: Intrinsic Properties of Standard PEDOT:PSS Formulations (e.g., Clevios PH1000)

Property	Typical Value Range	Notes for OSC Electrodes
Conductivity (as-cast)	0.1 – 1 S/cm	Insufficient for electrode use; requires enhancement.
Conductivity (post-treated)	500 – 4500 S/cm	Achievable via secondary doping (e.g., with DMSO, EG) or acids.
Optical Transmittance (400-800 nm)	> 90%	For ~100 nm film; crucial for light harvesting in OSCs.
Work Function	~5.0 – 5.2 eV	Aligns well with OSC active layer HOMO levels for hole collection.
Surface Roughness (RMS)	1 – 3 nm	Provides excellent film-forming property for layered OSC structures.
Thermal Stability	Up to ~200°C	Compatible with standard OSC processing temperatures.

Synthesis Protocols

Protocol 1: Oxidative Polymerization Synthesis (Laboratory Scale)

This protocol outlines the chemical synthesis of PEDOT:PSS dispersion.

• Reagents: 3,4-ethylenedioxythiophene (EDOT) monomer, polystyrene sulfonate sodium salt (PSS-Na), ammonium persulfate (APS) oxidant, iron(III) sulfate catalyst, ion-exchange resin.
• Procedure: a. Dissolve PSS-Na (0.18 M in terms of monomer unit) in deionized water under stirring. b. Add EDOT monomer (0.018 M) to the solution. The molar ratio of EDOT:PSS is typically 1:6 to 1:2.5. c. Add a catalytic amount of iron(III) sulfate. d. Prepare a separate oxidant solution of APS (0.016 M) in water. e. Slowly add the APS solution to the EDOT/PSS mixture under vigorous stirring at room temperature. Continue reaction for 24-48 hours. f. Terminate the reaction by passing the dispersion through a cation-exchange resin column to remove residual ions and metal catalysts. g. Filter the final dispersion through a 0.45 μm PVDF syringe filter. The resulting blue dispersion is typically ~1.0-1.3 wt% solids.

Protocol 2: Conductivity Enhancement Treatment for OSC Electrodes

This protocol details the preparation of high-conductivity PEDOT:PSS films for transparent anodes.

• Reagents: Commercial PEDOT:PSS dispersion (e.g., Clevios PH1000), dimethyl sulfoxide (DMSO), isopropyl alcohol (IPA), surfactant (e.g., Capstone FS-30).
• Procedure: a. Doping: Mix the PEDOT:PSS dispersion with 5-7% v/v DMSO (a conductivity enhancer) and 0.1-0.5% v/v surfactant (for wettability). Stir for >2 hours. b. Substrate Preparation: Clean glass or PET substrates sequentially with detergent, DI water, acetone, and IPA under sonication. Treat with UV-Ozone for 15 minutes. c. Deposition: Deposit the mixture via spin-coating (e.g., 3000-5000 rpm for 60 s) or slot-die/bar coating for larger areas. d. Annealing: Immediately transfer the wet film to a hotplate and anneal at 120-140°C for 10-20 minutes in air. This removes water and induces phase separation, boosting conductivity. e. (Optional Post-Treatment): For higher conductivity, treat the annealed film with a solution of formic acid, sulfuric acid, or methanol for a few minutes, followed by rinsing and re-annealing.

The Scientist's Toolkit: Research Reagent Solutions

Table 2: Essential Materials for PEDOT:PSS Electrode Fabrication in OSC Research

Reagent/Material	Function & Purpose in OSC Context
PEDOT:PSS Dispersion (PH1000)	The primary conductive polymer formulation for transparent anode fabrication.
Dimethyl Sulfoxide (DMSO)	Secondary dopant; improves conductivity by reorganizing PEDOT/PSS morphology.
Ethylene Glycol (EG)	Alternative conductivity enhancer with similar mechanism to DMSO.
Surfactant (e.g., Zonyl, Capstone)	Improves wettability and film formation on hydrophobic active layers or substrates.
Formic/Sulfuric Acid	Post-treatment solvent; removes excess PSS and promotes PEDOT reordering for ultra-high conductivity.
UV-Ozone Cleaner	Increases substrate surface energy for uniform coating and modifies PEDOT:PSS work function.

Experimental Workflow and Structure Diagrams

Workflow for PEDOT:PSS Electrode Fabrication

PEDOT:PSS Structure-Property Relationship

PEDOT:PSS is a versatile conductive polymer whose properties, particularly conductivity and work function, can be tuned via synthesis and processing for optimal performance as a transparent electrode in OSCs. The provided protocols and data tables offer a foundational guide for researchers integrating this material into advanced organic photovoltaic device architectures.

Application Notes

The optimization of Poly(3,4-ethylenedioxythiophene):poly(styrenesulfonate) (PEDOT:PSS) as a transparent conductive electrode (TCE) is pivotal for advancing the performance and commercial viability of Organic Solar Cells (OSCs). Its dual advantage stems from the inherently conductive PEDOT-rich cores and the insulating, transparent PSS-rich shell. This structure provides a baseline for conductivity while allowing light transmission. Post-treatment methodologies fundamentally alter this nanoscale morphology and doping level, enabling independent tuning of electrical and optical properties.

• Conductivity Enhancement Mechanism: Treatments with polar solvents (e.g., DMSO, ethylene glycol) or acids (e.g., H₂SO₄) partially remove insulating PSS, induce conformational change from coiled to linear/branched structures, and promote phase separation between PEDOT and PSS. This results in larger, better-connected conductive PEDOT domains, drastically increasing charge carrier mobility and film conductivity by orders of magnitude.
• Transparency Maintenance Mechanism: High transparency in the visible spectrum is preserved because the treatment primarily affects the nanoscale organization of the polymer blend rather than creating a fundamentally new, light-absorbing material. The treated film remains an ultra-thin (often <100 nm), uniform layer with minimal light scattering and absorption.
• Impact on OSC Performance: Replacing brittle ITO with flexible, tunable PEDOT:PSS TCEs reduces fabrication costs and enables roll-to-roll processing for flexible OSCs. The work function of PEDOT:PSS can also be tuned via treatments to better match the energy levels of the photoactive layer, minimizing interfacial energy barriers and enhancing open-circuit voltage (V_OC) and fill factor (FF).

Quantitative Data Summary

Table 1: Performance of PEDOT:PSS Electrodes via Different Post-Treatments

Post-Treatment Method	Sheet Resistance (Ω/sq)	Transparency @550 nm (%)	Conductivity (S/cm)	Haacke FOM (ΦH= T¹⁰ / Rs)
Pristine (Reference)	~ 1 x 10⁶	~ 85	~ 0.5 - 1	~ 1 x 10⁻⁷
5% DMSO (Vapor)	~ 200 - 500	~ 89	~ 450	~ 8 x 10⁻³
Ethylene Glycol (Immersion)	~ 80 - 150	~ 87	~ 1200	~ 3 x 10⁻²
Concentrated H₂SO₄	~ 40 - 70	~ 82	~ 3000	~ 1 x 10⁻²
Formic Acid (95%)	~ 60 - 100	~ 86	~ 1800	~ 4 x 10⁻²
Commercial ITO (Reference)	~ 10 - 15	~ 85	~ 6000	~ 2 x 10⁻²

Table 2: OSC Performance with Optimized PEDOT:PSS TCEs vs. ITO

Device Architecture	TCE Material	Power Conversion Efficiency (PCE, %)	V_OC (V)	J_SC (mA/cm²)	FF (%)
PM6:Y6	ITO	15.8	0.83	25.6	74.2
PM6:Y6	H₂SO₄-treated PEDOT:PSS	15.1	0.84	24.9	72.0
PTB7-Th:PC71BM	EG-treated PEDOT:PSS	9.2	0.79	17.1	68.0

Experimental Protocols

Protocol 1: Acid Treatment for High-Conductivity PEDOT:PSS Films

• Substrate Preparation: Clean glass or flexible PET substrates sequentially in ultrasonic baths of detergent, deionized water, acetone, and isopropanol for 15 minutes each. Dry under N₂ stream and treat with UV-Ozone for 20 minutes.
• Film Deposition: Filter commercially available PEDOT:PSS aqueous dispersion (e.g., Clevios PH1000) through a 0.45 μm PVDF syringe filter. Deposit the dispersion onto the substrate via spin-coating (3000-5000 rpm for 30-60 s) or slot-die/bar coating for large areas. Soft-bake at 120°C for 10 minutes on a hotplate.
• Acid Treatment: Carefully immerse the film in concentrated sulfuric acid (≥95%) for 1-5 minutes at room temperature. Caution: Use appropriate PPE and fume hood.
• Rinsing & Drying: Thoroughly rinse the film by immersing it in three successive deionized water baths (1 min each) to remove residual acid and PSS. Blow dry with N₂.
• Annealing: Thermally anneal the film on a hotplate at 120°C for 10-15 minutes in air.

Protocol 2: Fabrication of an OSC with PEDOT:PSS TCE

• TCE Preparation: Fabricate and treat the PEDOT:PSS electrode on the substrate following Protocol 1.
• Electron Transport Layer (ETL) Deposition: Spin-coat a ZnO nanoparticle solution (typically in ethanol) at 3000 rpm for 30 s onto the PEDOT:PSS film. Anneal at 120°C for 20 minutes.
• Photoactive Layer Deposition: In a nitrogen-filled glovebox, prepare the active layer blend solution (e.g., PM6:Y6 in chloroform with 0.5% CN additive). Spin-coat onto the ETL at optimal speed (e.g., 2500-3500 rpm) for 60 s. Allow solvent annealing for 2-3 minutes, then thermally anneal at 100°C for 10 minutes.
• Hole Transport Layer (HTL) Deposition: Spin-coat a thin layer of MoO₃ (solution) or evaporate a 5-10 nm MoO₃ layer under high vacuum.
• Top Electrode Deposition: Thermally evaporate a 100 nm silver (Ag) electrode through a shadow mask under high vacuum (<5 x 10⁻⁶ Torr) to define the active area.
• Encapsulation: Glue a glass cover slip over the device using UV-curable epoxy inside the glovebox to prevent degradation.

Diagrams

Title: Mechanism of Conductivity Tuning in PEDOT:PSS

Title: OSC Fabrication Workflow with PEDOT:PSS TCE

The Scientist's Toolkit

Table 3: Key Research Reagent Solutions for PEDOT:PSS TCE Research

Material/Reagent	Function/Explanation	Example Specification/Note
PEDOT:PSS Dispersion	The foundational conductive polymer ink. Provides the baseline transparent conductive layer.	Clevios PH1000 (Heraeus), conductivity grade, 1.0-1.3% in H₂O.
Dimethyl Sulfoxide (DMSO)	A common secondary dopant/solvent additive. Increases conductivity by inducing structural rearrangement.	Anhydrous, ≥99.9%. Often added at 3-7% v/v to the dispersion before coating.
Sulfuric Acid (H₂SO₄)	Strong acid post-treatment. Removes excess PSS, dramatically boosts conductivity, but requires careful handling.	Concentrated, 95-98%. Used for immersion treatment for highest conductivities.
Ethylene Glycol (EG)	Polyol solvent for post-treatment. Enhances conductivity through similar mechanisms as DMSO but often more effective.	Anhydrous, 99.8%. Used as immersion or additive.
Zinc Oxide (ZnO) Nanoparticles	Forms the electron transport layer (ETL) on the TCE, facilitating electron collection.	Colloidal dispersion in ethanol or butanol (~2.5% wt).
Photoactive Blend	The light-absorbing, charge-generating bulk heterojunction layer.	e.g., PM6 (polymer donor) and Y6 (non-fullerene acceptor) dissolved in chloroform.
Molybdenum Trioxide (MoO₃)	Forms the hole transport layer (HTL), facilitating hole collection at the anode.	Available as powder for thermal evaporation or as a solution-processable precursor.
Chlorobenzene / Chloroform	Common organic solvents for dissolving OSC active layer materials.	Anhydrous, with stabilizers as needed, for use in glovebox.

Application Notes: PEDOT:PSS as a Transparent Electrode in OSCs

The integration of Poly(3,4-ethylenedioxythiophene):poly(styrenesulfonate) (PEDOT:PSS) as a transparent electrode directly leverages the core inherent benefits of Organic Solar Cells (OSCs). Within the broader thesis of advancing OSC commercialization, PEDOT:PSS addresses critical limitations of traditional transparent conductive oxides (TCOs) like Indium Tin Oxide (ITO).

• Work Function Tunability: The work function (WF) of PEDOT:PSS can be modified from ~4.9 eV to over 5.2 eV through simple additive engineering or post-treatment, enabling optimal energy level alignment with various photoactive layer donors (e.g., PM6, D18) and acceptors (e.g., Y6, ITIC). This tunability minimizes energy barriers for hole collection, directly enhancing open-circuit voltage (V_OC) and fill factor (FF).
• Solution-Processability: PEDOT:PSS is amenable to low-cost, high-throughput deposition techniques such as slot-die coating, inkjet printing, and roll-to-roll (R2R) processing on flexible substrates. This facilitates the fabrication of large-area, lightweight solar modules, significantly reducing manufacturing energy consumption and capital expense compared to vacuum-sputtered ITO.
• Mechanical Flexibility: The polymeric nature of PEDOT:PSS grants it superior mechanical robustness under tensile and compressive stress compared to brittle ITO. This is paramount for the development of wearable, portable, and building-integrated photovoltaic (BIPV) applications where repeated bending or conformability is required.

Table 1: Quantitative Comparison of PEDOT:PSS vs. ITO Electrodes in OSCs

Parameter	PEDOT:PSS (Optimized)	ITO (Standard)	Implication for OSCs
Average Visible Transmittance (%)	85 - 92 (on glass)	85 - 90	Comparable light-harvesting potential.
Sheet Resistance (Ω/sq)	40 - 200 (film dependent)	10 - 15	Higher resistive loss for PEDOT:PSS; requires grid designs for large areas.
Work Function (eV)	4.9 - 5.3 (tunable)	~4.7 (fixed)	PEDOT:PSS enables better hole extraction, boosting V_OC & FF.
Bending Radius (mm)	< 2	~ 10 (cracks)	PEDOT:PSS enables truly flexible, durable devices.
Processing Temperature (°C)	100 - 140 (Air)	> 250 (Vacuum)	PEDOT:PSS compatible with low-T, plastic substrates (PEN, PET).
Power Conversion Efficiency (PCE)*	16 - 18% (champion cells)	17 - 19% (champion cells)	State-of-the-art PCEs are now comparable.

Data from recent literature (2023-2024).

Experimental Protocols

Protocol 2.1: Work Function Tuning of PEDOT:PSS via Solvent Post-Treatment

Objective: To increase the work function and conductivity of PEDOT:PSS films for improved anode performance. Materials: See "The Scientist's Toolkit" below. Method:

• Substrate Preparation: Clean glass or PET substrates sequentially with detergent, deionized water, acetone, and isopropanol under sonication for 15 minutes each. Dry under nitrogen flow and treat with UV-ozone for 20 minutes.
• Film Deposition: Filter PEDOT:PSS (PH1000) through a 0.45 μm PVDF syringe filter. Deposit the film via spin-coating at 3000 rpm for 60 sec onto the substrate to achieve a 40-50 nm thick layer. Alternatively, use slot-die coating with a web speed of 1.0 m/min and a flow rate of 50 μL/min.
• Thermal Annealing: Immediately transfer the wet film to a hotplate and anneal at 120°C for 15 minutes in air.
• Solvent Post-Treatment: After annealing, while the film is still hot, gently drip 200 μL of ethylene glycol (EG), dimethyl sulfoxide (DMSO), or a 1% v/v sorbitol solution in methanol onto the film surface. Use a spin-coater to spread the solvent evenly (2000 rpm, 30 sec).
• Secondary Annealing: Anneal the treated film again at 120°C for 10 minutes.
• Characterization: Measure sheet resistance with a 4-point probe. Determine work function via Kelvin Probe Force Microscopy (KPFM) or photoelectron spectroscopy in air (PESA).

Protocol 2.2: Fabrication of a Flexible OSC with PEDOT:PSS Anode

Objective: To construct a fully solution-processed, flexible OSC device. Device Structure: PET / PEDOT:PSS (Anode) / PTB7-Th:PC71BM (Active) / PFN-Br (Cathode Interlayer) / Ag (Cathode). Method:

• Flexible Substrate & Electrode: Use a pre-cleaned 125 μm PET sheet. Deposit PEDOT:PSS (PH1000 + 5% DMSO + 0.5% Zonyl) via slot-die coating. Anneal at 130°C for 15 min in a glovebox antechamber.
• Active Layer Deposition: Prepare a solution of PTB7-Th:PC71BM (1:1.5 wt%) in chlorobenzene with 3% v/v 1,8-diiodooctane. Stir overnight at 60°C. Filter (0.45 μm PTFE) and coat onto the PEDOT:PSS film inside a nitrogen glovebox using a doctor blade set to a 100 μm gap. Let the wet film sit in a covered petri dish for 2 minutes (solvent annealing), then blade-coat again at 70°C to dry. Transfer to a hotplate and anneal at 100°C for 10 minutes.
• Cathode Interlayer: Deposit a thin (~5 nm) layer of PFN-Br (0.5 mg/mL in methanol) by spin-coating at 5000 rpm for 30 sec.
• Top Cathode: Transfer the device to a thermal evaporator. Deposit 100 nm of silver through a shadow mask at a rate of 1-2 Å/s under high vacuum (< 5 x 10⁻⁶ Torr) to define the active area (e.g., 0.04 cm²).
• Encapsulation: Immediately transfer the device to an N₂-filled chamber and laminate with a barrier film (e.g., UV-cured epoxy and PET barrier stack).
• Testing: Characterize current density-voltage (J-V) curves under AM 1.5G illumination (100 mW/cm²) using a solar simulator and source measure unit. Perform bending tests (e.g., 1000 cycles at a 5 mm radius).

Visualizations

Title: PEDOT:PSS Work Function Tuning Pathways

Title: Flexible OSC Fabrication Workflow

The Scientist's Toolkit: Essential Research Reagents & Materials

Table 2: Key Reagents for PEDOT:PSS-based OSC Research

Item	Function/Description	Example (Supplier)
PEDOT:PSS Dispersion	Conductive polymer complex; the core electrode material. High-conductivity grades are essential.	Clevios PH1000 (Heraeus), Orgacon (Agfa)
Conductivity Enhancers	High-boiling-point solvents that reorganize PEDOT:PSS morphology, boosting conductivity.	Dimethyl Sulfoxide (DMSO), Ethylene Glycol (EG)
Surfactants/Wetting Agents	Improve film formation and adhesion on hydrophobic substrates (e.g., PET).	Zonyl FS-300, Triton X-100, Dynol
Strong Acid Treatments	Remove excess PSS, drastically increasing conductivity and WF via secondary doping.	Sulfuric Acid (H₂SO₄, 95%), Methanesulfonic Acid (MSA)
Photoactive Layer Donors	Electron-donor polymers absorbing sunlight and transporting holes.	PM6, PTB7-Th, D18
Photoactive Layer Acceptors	Electron-acceptor materials (fullerene or non-fullerene).	Y6, ITIC, PC71BM
High-Boiling Point Solvent Additives	Control active layer morphology for efficient charge separation.	1,8-Diiodooctane (DIO), 1-Chloronaphthalene (CN)
Cathode Interlayer Materials	Facilitate electron collection and improve ohmic contact at the cathode.	PFN-Br, PDINO, ZnO nanoparticles
Flexible Substrates	Provide mechanical support for lightweight, flexible devices.	Polyethylene Naphthalate (PEN), Polyethylene Terephthalate (PET)
Encapsulation Barrier Film	Protects the oxygen/moisture-sensitive OSC layers from degradation.	UV-curable epoxy + alternating Al₂O₃/Polymer stacks

Application Notes: PEDOT:PSS as a Transparent Electrode in OSCs

The evolution of poly(3,4-ethylenedioxythiophene):poly(styrene sulfonate) (PEDOT:PSS) from a hole transport/interfacial layer to a primary transparent electrode represents a pivotal advancement in the fabrication of fully solution-processed, flexible organic solar cells (OSCs). This transition addresses key limitations of brittle and expensive indium tin oxide (ITO), enabling roll-to-roll manufacturing and mechanically robust devices. The core challenge lies in enhancing the electrical conductivity and environmental stability of pristine PEDOT:PSS films without compromising their optical transparency or smooth morphology.

Key Performance Metrics: ITO vs. Optimized PEDOT:PSS Electrodes

Table 1: Comparative Performance Metrics of Transparent Electrodes for OSCs

Parameter	Standard ITO	Pristine PEDOT:PSS (HTL)	High-Conductivity PEDOT:PSS (Electrode)
Sheet Resistance (Ω/sq)	10 - 20	10⁵ - 10⁶	30 - 100
Visible Transmittance (%)	~85	~90	85 - 95
Conductivity (S/cm)	5,000 - 10,000	0.1 - 1	800 - 4,500
Work Function (eV)	4.7 - 4.9	5.0 - 5.2	4.9 - 5.2 (tunable)
Flexibility (Bending Radius)	Poor (< 5 mm)	Excellent (< 1 mm)	Excellent (< 1 mm)
Processing Method	Sputtering (Vacuum)	Solution (Ambient)	Solution (Ambient)

Optimization Strategies: Primary methods to boost conductivity involve post-treatment of films with high-boiling-point organic solvents (e.g., dimethyl sulfoxide, ethylene glycol) or acids (e.g., sulfuric, methanesulfonic acid). These treatments induce a morphological rearrangement, reducing insulating PSS-rich domains and promoting phase separation for better charge percolation. The resulting films exhibit a trade-off between conductivity and transmittance, which must be optimized for maximum OSC power conversion efficiency (PCE).

Table 2: Impact of Common Post-Treatments on PEDOT:PSS Film Properties

Treatment Method	Conductivity Achieved (S/cm)	Key Mechanism	Stability Consideration
Ethylene Glycol (EG) Co-Solvent	300 - 900	PSS shell removal, conformational change	Good; hygroscopic
DMSO Co-Solvent	400 - 800	Solvent-induced reorientation	Very Good
H₂SO₄ Immersion	3,000 - 4,500	Removal of PSS, grain growth	Excellent; requires handling
MSA Vapor Treatment	2,000 - 3,500	Mild reorganization, doping	Excellent
Methanol Rinse	800 - 1,500	Removal of excess PSS	Good

---

Experimental Protocols

Protocol 1: Fabrication of High-Conductivity PEDOT:PSS Transparent Electrodes

Objective: To prepare a transparent electrode with sheet resistance < 100 Ω/sq and transmittance > 85% in the visible spectrum.

Research Reagent Solutions & Materials: Table 3: Essential Materials for PEDOT:PSS Electrode Fabrication

Item	Function/Description
PH1000 (or Clevios)	Commercial high-solid-content PEDOT:PSS dispersion (1.0-1.3% wt).
Dimethyl Sulfoxide (DMSO)	Conductivity enhancer additive (5-7% v/v).
Zonyl FS-300	Fluorosurfactant (0.1% v/v) to improve wetting and film uniformity.
0.45 µm PVDF Syringe Filter	For filtering the final ink to remove aggregates.
Oxygen Plasma Cleaner	For pre-cleaning glass or flexible PET substrates.
Methanol or Ethanol	For substrate rinsing and post-rinsing.
Hotplate	For thermal annealing.

Procedure:

• Ink Formulation: Mix commercial PH1000 dispersion thoroughly. Add DMSO to a final concentration of 6% v/v and Zonyl FS-300 to 0.1% v/v. Stir the mixture magnetically for >2 hours.
• Filtration: Pass the ink through a 0.45 µm PVDF syringe filter directly before deposition.
• Substrate Preparation: Clean glass or PET/ITO-free substrates sequentially with detergent, deionized water, ethanol, and isopropanol in an ultrasonic bath. Dry with nitrogen. Treat with oxygen plasma for 5-10 minutes.
• Film Deposition: Spin-coat the filtered ink at 500 rpm for 5s (spread) followed by 2000-4000 rpm for 60s. Alternatively, use a doctor blade or slot-die coater for larger areas. Target film thickness: 70-120 nm.
• Post-Treatment: Immediately after deposition, place the film on a hotplate at 120°C for 15 minutes. For enhanced conductivity, immerse the annealed film in a methanol bath for 15 minutes, then re-anneal at 120°C for 10 min.
• Characterization: Measure sheet resistance via four-point probe. Record UV-Vis transmittance spectrum (400-800 nm). Perform atomic force microscopy for surface roughness analysis.

Protocol 2: Fabrication and Evaluation of an ITO-Free Bulk Heterojunction OSC

Objective: To integrate a high-conductivity PEDOT:PSS electrode into a standard OSC architecture and evaluate its photovoltaic performance.

Device Architecture: Glass / PEDOT:PSS (Primary Electrode) / PEDOT:PSS (HTL) / PM6:Y6 Active Layer / PFN-Br (ETL) / Ag (Top Electrode)

Procedure:

• Bottom Electrode Fabrication: Follow Protocol 1 to fabricate the PEDOT:PSS primary electrode on a glass substrate.
• Hole Transport Layer Deposition: Spin-coat a standard PEDOT:PSS Al 4083 layer (diluted 1:1 with IPA) at 4000 rpm for 40s onto the primary electrode. Anneal at 140°C for 15 min. This bilayer ensures optimal interface properties.
• Active Layer Preparation: In a nitrogen glovebox, prepare a solution of donor polymer PM6 and acceptor Y6 (total concentration 16 mg/mL, 1:1.2 ratio) in chloroform with 0.5% v/v 1-chloronaphthalene. Stir overnight at 60°C.
• Active Layer Deposition: Spin-coat the active layer solution at 3000 rpm for 30s onto the PEDOT:PSS HTL to achieve a ~100 nm film. Allow solvent annealing for 2 minutes before proceeding.
• Electron Transport Layer Deposition: Spin-coat PFN-Br (0.5 mg/mL in methanol) at 3000 rpm for 30s.
• Top Electrode Evaporation: Transfer the device to a thermal evaporator. Evaporate 80-100 nm of silver through a shadow mask at a base pressure < 5x10⁻⁶ Torr to define the active area (e.g., 0.04 cm²).
• Device Testing: Characterize current density-voltage (J-V) characteristics under AM 1.5G illumination (100 mW/cm²) using a calibrated solar simulator and source meter. Measure external quantum efficiency (EQE).

---

Visualizations

PEDOT:PSS Electrode Fabrication Workflow

Organic Solar Cell with PEDOT:PSS Electrode

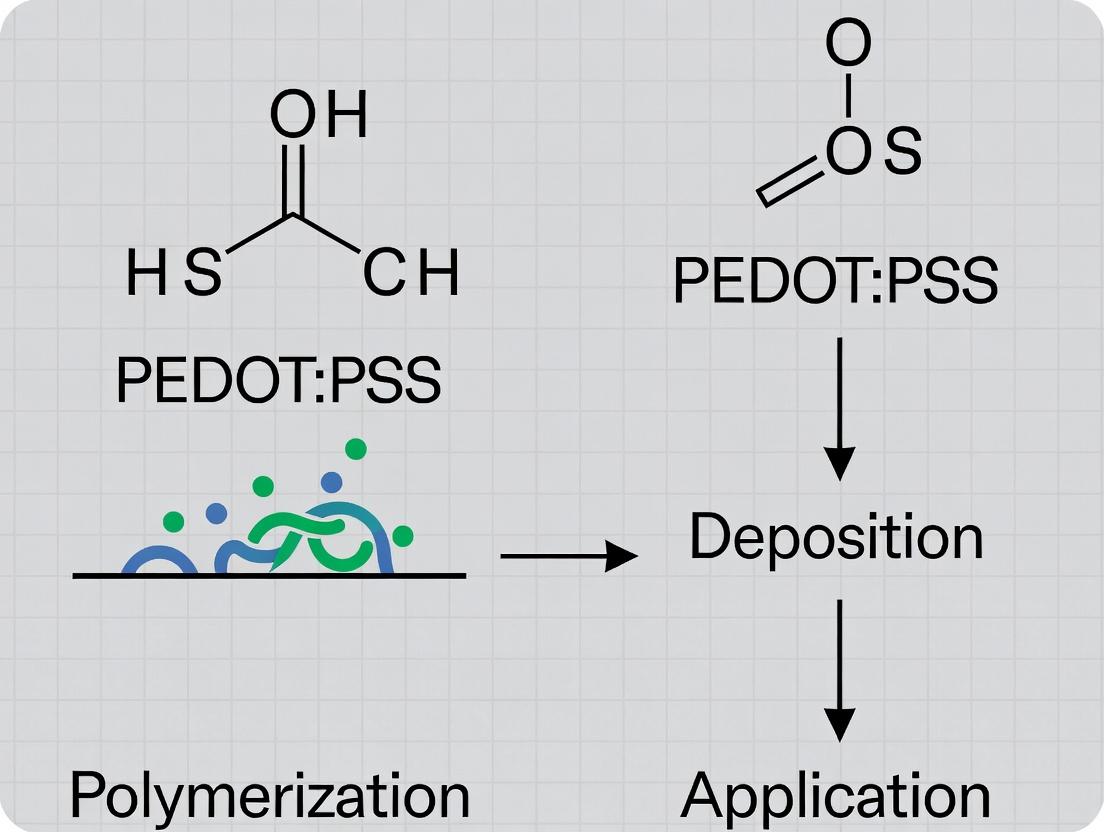

Evolution of PEDOT:PSS Function in OSCs

Fabrication Frontiers: Techniques for Depositing and Integrating PEDOT:PSS Electrodes

Application Notes

Within the research context of utilizing poly(3,4-ethylenedioxythiophene):poly(styrene sulfonate) (PEDOT:PSS) as a transparent electrode for organic solar cells (OSCs), solution-processing techniques are critical for enabling scalable, low-cost manufacturing. These techniques determine the film's morphological, electrical, and optical properties, directly impacting device performance parameters such as power conversion efficiency (PCE), sheet resistance, and transparency.

• Spin-Coating is the predominant lab-scale technique for rapid prototyping and fundamental research due to its simplicity and ability to produce highly uniform, thin films. However, its high material waste (>95%) and incompatibility with continuous, large-area substrates limit its industrial adoption.
• Slot-Die Coating is a leading contender for roll-to-roll (R2R) manufacturing of OSCs. It is a pre-metered technique where the solution is precisely dispensed through a slot in the die head onto a moving substrate. It offers excellent material utilization (>90%), good uniformity control, and is directly scalable for fabricating large-area modules.
• Inkjet Printing is a non-contact, digital additive manufacturing technique. It deposits picoliter droplets of functional ink precisely according to a digital pattern. Its key advantages include minimal material waste, compatibility with flexible substrates, and the ability for rapid pattern changes without physical masks. It is ideal for patterning PEDOT:PSS grids or as a complementary technique for layer deposition in complex device architectures.

Critical Parameters for PEDOT:PSS Electrodes: The performance of the final electrode is highly dependent on the processing parameters of each technique, which influence the drying kinetics, phase separation between PEDOT and PSS, and film stratification. Post-treatment (e.g., with ethylene glycol, dimethyl sulfoxide, or acids) remains essential for enhancing conductivity but must be integrated with the coating workflow.

Table 1: Comparative Analysis of Solution-Processing Techniques for PEDOT:PSS Electrodes in OSCs

Parameter	Spin-Coating	Slot-Die Coating	Inkjet Printing
Typical Solid Content	1.0 - 1.5 wt%	1.5 - 2.5 wt%	0.5 - 1.2 wt%
Typical Film Thickness	30 - 100 nm	40 - 120 nm	20 - 80 nm (per pass)
Material Utilization	< 5%	> 90%	> 95%
Coating Speed	Fixed by RPM	0.1 - 10 m/min (R2R)	1 - 100 mm/s (printhead)
Key Processing Variables	Spin speed, acceleration, time	Flow rate, substrate speed, gap height, temperature	Drop spacing, jetting voltage/pulse, cartridge temperature, substrate temperature
Best Sheet Resistance (post-treated)	40 - 80 Ω/sq	50 - 100 Ω/sq	70 - 150 Ω/sq
Transparency (550 nm)	85 - 95%	85 - 92%	80 - 90%
Scalability	Low (Batch)	High (R2R/Sheet-to-Sheet)	Medium-High (Digital, potentially R2R)
Primary Research Use	Fundamental studies, optimization	Process translation, module fabrication	Patterning, multi-material stacks, flexible devices

Experimental Protocols

Protocol 3.1: Spin-Coating of PEDOT:PSS Films (Lab-Scale Reference)

Objective: To produce uniform, thin PEDOT:PSS films on glass or ITO substrates for use as a transparent electrode or hole transport layer in OSCs.

• Substrate Preparation: Clean glass/ITO substrates sequentially in Hellmanex III (2%), deionized water, acetone, and isopropanol via ultrasonication for 15 minutes each. Dry with nitrogen and treat with UV-ozone for 20 minutes.
• Ink Formulation: Filter commercially available PEDOT:PSS solution (e.g., Clevios PH1000) through a 0.45 μm PVDF syringe filter. Optionally, mix with 5-7% v/v ethylene glycol (EG) and 0.1-0.5% v/v Zonyl FS-300 fluorosurfactant to enhance conductivity and wettability.
• Coating Process: Pipette 50-100 μL of the formulated ink onto the static substrate. Initiate the spin coater program: 500 rpm for 5 s (spread stage), followed immediately by 3000-5000 rpm for 30-60 s (thin film stage).
• Post-Processing: Immediately transfer the wet film to a hotplate and anneal at 120-140 °C for 10-15 minutes in air. For conductivity enhancement, a secondary treatment (e.g., immersion in EG or methanesulfonic acid) may be applied post-annealing.

Protocol 3.2: Slot-Die Coating of PEDOT:PSS Films (R2R-Compatible)

Objective: To deposit a continuous, uniform PEDOT:PSS electrode on a flexible PET substrate for large-area OSC fabrication.

• System Setup: Install a slot-die head with a 50-100 μm shim gap. Connect to a precision syringe pump. Set the substrate (PET) temperature to 40°C. Align the head parallel to the substrate with a coating gap of 150-250 μm.
• Ink Formulation: Prepare a viscous PEDOT:PSS formulation (≥1.8 wt%) as in Protocol 3.1. Ensure it is degassed to prevent microbubbles.
• Coating Process: Prime the slot-die head and tubing with ink. Set the syringe pump to a flow rate (Q) of 50-150 μL/min. Initiate the substrate motion at a speed (v) of 0.5-2.0 m/min. The wet film thickness is given by t_wet = Q / (v * w), where w is the coating width.
• Drying & Annealing: Pass the coated web through a multi-zone drying oven (e.g., 60°C, 80°C, 100°C for 1-2 minutes each zone) integrated into the R2R line.

Protocol 3.3: Inkjet Printing of PEDOT:PSS Electrode Grids

Objective: To digitally print a high-conductivity PEDOT:PSS grid as a transparent composite electrode.

• Ink Development: Dilute PEDOT:PSS (PH1000) with deionized water and additives (e.g., 3% EG, 0.3% Zonyl) to achieve a viscosity of 8-15 cP and surface tension of 28-33 mN/m. Filter through a 0.2 μm filter.
• Printer & Waveform Calibration: Load ink into a piezoelectric cartridge (e.g., Dimatix DMC-11610). Using the printer software, optimize the jetting waveform (voltage, rise/fall time) to achieve a stable, satellite-free drop with a velocity of 5-8 m/s.
• Pattern Design & Printing: Design a grid pattern (e.g., 100 μm lines, 2 mm pitch) in graphic software. Set the drop spacing (e.g., 20 μm) to ensure line continuity. Print onto a heated substrate (PET at 50°C) to control droplet spreading and drying.
• Sintering: Anneal the printed grid at 130°C for 15 minutes. The grid can be combined with a spin-coated or slot-die-coated blanket conducting layer (e.g., Ag nanowires) to form a hybrid electrode.

Visualizations

Title: PEDOT:PSS Electrode Fabrication Workflow

The Scientist's Toolkit

Table 2: Essential Research Reagents & Materials for Solution-Processed PEDOT:PSS Electrodes

Item	Function & Rationale
PEDOT:PSS Dispersion (e.g., Clevios PH1000)	The core conductive polymer material. Aqueous dispersion of poly(3,4-ethylenedioxythiophene) doped with poly(styrene sulfonate). High conductivity grade is essential for electrode applications.
Ethylene Glycol (EG)	A conductivity-enhancing solvent additive. Improves charge transport by promoting the rearrangement/coalescence of PEDOT-rich domains and removing excess PSS.
Dimethyl Sulfoxide (DMSO)	Alternative high-boiling-point solvent additive. Serves a similar role to EG in enhancing conductivity through morphological changes during slow drying.
Zonyl FS-300	Fluorosurfactant. Reduces ink surface tension dramatically, improving wettability on hydrophobic substrates (e.g., photoactive layers, PET) for uniform film formation.
Methanesulfonic Acid (MSA)	Secondary treatment reagent. Drastically increases film conductivity (>>1000 S/cm) by removing insulating PSS and inducing a more favorable molecular ordering (edge-on orientation).
Poly(ethylene terephthalate) (PET) / Poly(ethylene naphthalate) (PEN)	Flexible plastic substrates. Enable lightweight, flexible OSC fabrication. Require careful surface energy matching and low-temperature processing (<150°C).
PVDF Syringe Filter (0.2 / 0.45 μm)	Essential for ink filtration. Removes aggregates and particulates that would otherwise cause defects (pinholes, nozzle clogging) in the final thin film.

Within the research framework of poly(3,4-ethylenedioxythiophene):poly(styrenesulfonate) (PEDOT:PSS) as a transparent electrode for Organic Solar Cells (OSCs), post-deposition treatments are critical for enhancing electrical conductivity, optical transparency, and interfacial properties. These treatments modify the nanoscale morphology, remove excess insulating PSS, and promote phase separation, leading to improved power conversion efficiencies (PCEs). This document provides detailed application notes and standardized protocols for three principal treatment methods, contextualized for OSC device research.

Detailed Application Notes & Protocols

Thermal Annealing

Application Notes: Thermal annealing is a fundamental treatment to remove residual solvent, induce structural rearrangement, and enhance charge carrier mobility. Optimal temperatures typically range from 120°C to 150°C; exceeding 200°C can degrade the PEDOT:PSS film and underlying organic layers in OSCs.

Protocol: Standard Thermal Annealing of PEDOT:PSS Films on Glass/ITO/OSC Substrates

• Substrate Preparation: Ensure PEDOT:PSS film (e.g., PH1000, with or without additives like 5% DMSO) is spin-coated or slot-die coated on the desired substrate (glass, ITO, or the active layer of an OSC stack) and dried at 80°C for 10-15 minutes to remove bulk water.
• Annealing Equipment: Use a programmable hotplate or vacuum oven placed inside a nitrogen-filled glovebox (<0.1 ppm O₂ & H₂O) to prevent oxidation of underlying OSC layers.
• Annealing Process:
  • Place the substrate on the pre-heated hotplate.
  • Anneal at a set temperature (e.g., 140°C) for a specific duration (e.g., 15-20 minutes).
  • Use a metal lid or petri dish to cover the substrate, ensuring gentle and uniform heating.
• Cooling: After annealing, transfer the substrate to a cooling plate at room temperature within the glovebox before proceeding to the next device fabrication step.

Vapor Treatment

Application Notes: Solvent vapor treatment (e.g., with dimethyl sulfoxide (DMSO), ethylene glycol (EG), or methanol) selectively swells the PEDOT:PSS matrix, facilitating PSS segregation and PEDOT domain connectivity. Acid vapor treatment (e.g., sulfuric, nitric, or formic acid) protonates PSS, leading to its partial removal and a dramatic conductivity increase.

Protocol: Formic Acid (FA) Vapor Treatment for High-Conductivity PEDOT:PSS Electrodes

• Setup Preparation: Inside a fume hood, assemble a sealed glass vessel (e.g., a desiccator). Place a glass vial containing 5-10 mL of high-purity formic acid (≥95%) at the bottom.
• Substrate Loading: Position the dried PEDOT:PSS-coated substrates on a holder above the acid vial, ensuring no direct contact with the liquid.
• Treatment Process: Seal the vessel tightly. The treatment occurs at room temperature (20-25°C). Exposure times range from 10 minutes to 2 hours, depending on desired conductivity and film thickness.
• Post-Treatment: Quickly remove the substrates and immediately transfer them to a nitrogen-filled glovebox. Anneal on a hotplate at 140°C for 10 minutes to remove any residual acid and stabilize the film.

Acid Treatment

Application Notes: Direct immersion in acidic solutions (e.g., H₂SO₄, HCl, Methanesulfonic Acid) is a highly effective "secondary doping" method. It induces a conformational change in PEDOT chains from benzoid to quinoid, removes insulating PSS, and densifies the film, yielding conductivities exceeding 3000 S/cm.

Protocol: Sulfuric Acid Immersion Treatment

• Solution Preparation: Under a fume hood, prepare a bath of concentrated sulfuric acid (e.g., 96% by weight). Caution: Use appropriate personal protective equipment (PPE) including acid-resistant gloves, goggles, and a lab coat.
• Treatment: Immerse the dried PEDOT:PSS film (on a substrate) into the acid bath for 1 to 5 minutes. Agitation is not necessary.
• Rinsing & Drying: Remove the substrate and immediately rinse it thoroughly with a large volume of deionized water (≥ 18.2 MΩ·cm) in a consecutive bath or under a gentle stream. Finally, rinse with methanol or isopropanol to promote rapid drying.
• Final Annealing: Dry the film in a vacuum oven or on a hotplate at 120-140°C for 15 minutes inside a glovebox to complete the process.

Data Presentation

Table 1: Comparative Performance of Post-Deposition Treatments on PEDOT:PSS (PH1000) Films

Treatment Method	Typical Conditions	Sheet Resistance (Ω/sq)	Conductivity (S/cm)	Transparency @550 nm (%)	Key Effect on PEDOT:PSS
Thermal Annealing	140°C, 15 min (inert)	200 - 500	600 - 1000	88 - 92	Residual solvent removal, minor morphological ordering.
DMSO Vapor	RT, 30 min	80 - 150	800 - 1200	85 - 90	Swelling, PSS redistribution, improved connectivity.
Formic Acid Vapor	RT, 30 min	50 - 100	1000 - 1500	87 - 91	Protonation and partial removal of PSS, phase separation.
H₂SO₄ Immersion	96%, 3 min, rinsed	20 - 50	2500 - 4500	80 - 86	Massive PSS removal, conformational change, film densification.
Methanesulfonic Acid	97%, 1 min, rinsed	30 - 60	2000 - 3500	82 - 88	Similar to H₂SO₄, slightly less corrosive.

Experimental Workflow Diagram

Title: Post-Deposition Treatment Workflow for PEDOT:PSS

The Scientist's Toolkit

Table 2: Essential Research Reagent Solutions for PEDOT:PSS Treatments

Item	Function in Treatment	Example/Note
PEDOT:PSS Dispersion	Base material for transparent electrode.	Clevios PH1000, with ~1.3% solids content.
High-Boiling Point Solvent Additive	Primary dopant to enhance initial conductivity.	5-7% v/v DMSO or Ethylene Glycol added to dispersion before deposition.
Concentrated Sulfuric Acid (H₂SO₄)	Secondary dopant via immersion treatment. Removes PSS, induces conformational change.	96% solution. Extreme caution required.
Formic Acid (CH₂O₂)	Secondary dopant via vapor treatment. Protonates/removes PSS.	≥95% purity for vapor phase treatment.
Dimethyl Sulfoxide (DMSO)	Solvent for vapor treatment to reorganize morphology.	Anhydrous grade for controlled treatment.
High-Purity Water	Critical rinsing agent after acid immersion.	Type I (18.2 MΩ·cm) to prevent contamination.
Methanol or Isopropanol	Final rinse to displace water and promote fast drying.	Anhydrous grade recommended.
Nitrogen Glovebox	Inert environment for annealing and storage.	Prevents oxidation of PEDOT:PSS and OSC layers.

Within the thesis research on optimizing PEDOT:PSS as a high-performance transparent electrode for organic solar cells (OSCs), patterning the electrode layer is critical for defining device architecture, minimizing dead area, and enabling complex geometries like series-interconnected modules. This application note details and contrasts three primary patterning methodologies, providing protocols for their implementation on PEDOT:PSS films.

Patterning Techniques: Comparative Analysis

Table 1: Comparative Overview of PEDOT:PSS Patterning Techniques

Parameter	Photolithography	Laser Ablation	Stamp-Based (Microcontact Printing)
Resolution	< 2 µm	10 - 50 µm	0.5 - 100 µm
Throughput	Low (Batch)	Medium-High	Medium (Batch)
Setup Cost	Very High	High	Low-Medium
Material Waste	High (Etchant/Resist)	Low	Very Low
PEDOT:PSS Compatibility	Moderate (Risk of doping from chemicals)	High (Non-contact)	High
Key Advantage	High resolution, industry-standard	Direct-write, maskless, programmable	Soft, chemical-free, suitable for flexible substrates
Key Limitation	Chemical exposure, multi-step process	Heat-affected zone, capital cost	Stamp deformation, pattern longevity

Detailed Protocols

Protocol 1: Photolithographic Patterning of PEDOT:PSS

Objective: To define micron-scale electrode patterns on a glass substrate. Materials: See "The Scientist's Toolkit" below. Workflow:

• Substrate Cleaning: Sonicate glass substrates in acetone, isopropanol, and deionized water (10 min each). Dry under N₂ stream and treat with O₂ plasma for 5 min.
• PEDOT:PSS Deposition: Spin-coat filtered PEDOT:PSS (PH1000 with 5% DMSO) at 3000 rpm for 60s. Anneal at 140°C for 15 min in air. Film thickness: ~40 nm.
• Photoresist Application: Spin-coat positive photoresist (e.g., S1813) at 4000 rpm for 45s. Soft-bake at 115°C for 60s.
• Exposure & Development: Expose through a chrome mask using a mask aligner (UV, 100 mJ/cm²). Develop in MF-319 developer for 60s, then rinse in DI water.
• Etching: Immerse sample in an aqueous oxalic acid (2% w/v) etch bath for 30-60 seconds to remove exposed PEDOT:PSS. Monitor under optical microscope.
• Resist Stripping: Rinse thoroughly in DI water. Soak in acetone with gentle agitation to remove photoresist. Finish with IPA and N₂ dry.
• Validation: Inspect pattern fidelity using optical microscopy and confirm conductivity with 4-point probe measurement on patterned lines.

Title: Photolithography Patterning Workflow for PEDOT:PSS

Protocol 2: Direct-Write Laser Ablation of PEDOT:PSS

Objective: To directly remove PEDOT:PSS in defined areas without masks or chemicals. Materials: PEDOT:PSS-coated substrate, pulsed UV laser system (e.g., Nd:YAG, 355 nm), motorized X-Y stage, optical microscope. Workflow:

• Substrate Preparation: Prepare and coat substrate as per Protocol 1, Steps 1-2.
• Laser System Calibration: Mount sample on stage. Using microscope, focus laser beam to a spot size of ~20 µm. Calibrate stage movement.
• Ablation Parameter Optimization: Perform test pattern on a sample edge. Vary fluence (100-500 mJ/cm²), pulse frequency (1-50 kHz), and scan speed.
  • Table 2: Typical Laser Parameters for ~40 nm PEDOT:PSS

    Parameter	Range	Optimal Value
    Wavelength	248 nm - 1064 nm	355 nm
    Fluence	100 - 500 mJ/cm²	280 mJ/cm²
    Repetition Rate	1 - 100 kHz	20 kHz
    Scan Speed	10 - 1000 mm/s	250 mm/s
    Passes	1 - 5	2

• Pattern Writing: Import electrode pattern (e.g., DXF file) into laser software. Execute the ablation routine with optimized parameters under fume extraction.
• Post-Processing: Gently blow away ablated debris with filtered N₂ or clean dry air. No chemical processing is required.
• Validation: Inspect for complete removal (optical/atomic force microscopy) and check for conductive residue in ablated channels (conductivity mapping).

Title: Laser Ablation Patterning Workflow for PEDOT:PSS

Protocol 3: Microcontact Printing (µCP) for PEDOT:PSS Patterning

Objective: To pattern PEDOT:PSS via additive transfer using a polydimethylsiloxane (PDMS) stamp. Materials: Silicon master, PDMS kit, PEDOT:PSS solution (low viscosity formulation), plasma cleaner. Workflow:

• Stamp Fabrication: Pour 10:1 mix of PDMS base:curing agent over silicon master. Degas, cure at 70°C for 2h. Peel off and cut stamp.
• Stamp & Substrate Activation: Treat PDMS stamp and target substrate with O₂ plasma for 30s.
• "Inking": Immediately after plasma, apply a thin layer of PEDOT:PSS solution (diluted 1:1 with isopropanol) to the stamp's patterned surface. Blow off excess with N₂, leaving solution in recessed features.
• Contact Transfer: Gently place the inked stamp onto the target substrate. Apply light, uniform pressure (~0.1 N/cm²) for 1-2 minutes.
• Stamp Release: Carefully peel the stamp away from the substrate. The PEDOT:PSS film remains in the contact areas.
• Annealing: Anneal the transferred pattern at 120°C for 10 min to improve adhesion and conductivity.
• Validation: Optical inspection for completeness and profilometry to measure printed line thickness.

Title: Microcontact Printing Workflow for PEDOT:PSS

The Scientist's Toolkit: Research Reagent Solutions

Table 3: Essential Materials for PEDOT:PSS Patterning

Item	Function & Relevance	Example/Specification
PEDOT:PSS Dispersion	Conductive polymer electrode material. High-conductivity grade required.	Heraeus Clevios PH1000, with 3-7% DMSO or ethylene glycol additive.
Positive Photoresist	Light-sensitive polymer for defining etch mask in photolithography.	Microposit S1813 series, spin-coated for ~1.3 µm films.
Aqueous Developer	Removes exposed areas of positive photoresist.	MF-319 (Tetramethylammonium hydroxide based).
PEDOT:PSS Etchant	Selectively removes PEDOT:PSS without damaging substrate.	Oxalic acid solution (1-3% w/v in DI water) or commercial TFD etchant.
PDMS Kit	Silicone elastomer for fabricating soft stamps in µCP.	Dow Sylgard 184, mixed 10:1 base:curing agent.
Pulsed UV Laser	Provides high-energy photons for clean, localized ablation.	Nd:YAG (355 nm) or excimer (248 nm) with precision X-Y stage.
Oxygen Plasma Cleaner	Increases surface energy for coating adhesion and stamp inking.	50-100 W, 30-60 second treatment time.
Optical Alignment System	Critical for mask alignment in photolithography and laser focus.	Mask aligner with UV source or integrated microscope on laser stage.

The choice of patterning strategy for PEDOT:PSS electrodes in OSC research depends on the required resolution, substrate compatibility, and available resources. Photolithography offers the highest precision, laser ablation provides flexible direct-writing, and stamp-based techniques enable gentle, additive patterning ideal for flexible substrates. Integrating these protocols into the thesis workflow allows for systematic optimization of electrode architecture towards higher efficiency and scalable OSC device fabrication.

Within the broader thesis investigating the viability of PEDOT:PSS as a transparent electrode in organic photovoltaics (OPVs), this application note details the practical integration of this material into functional device architectures. The versatility of PEDOT:PSS allows its deployment as a hole transport layer (HTL) in standard and inverted configurations (effectively as part of the anode or cathode interface, respectively) and as an interconnect layer in tandem cells. Successful integration requires precise control over formulation, processing, and interfacial engineering to balance conductivity, work function, transparency, and stability.

PEDOT:PSS Configurations in Single-Junction OSCs

As a Part of the Anode (Standard Configuration)

In the standard geometry (glass/ITO/PEDOT:PSS/active layer/Cathode), PEDOT:PSS serves as the HTL, smoothing the ITO surface, adjusting its work function (~4.9-5.2 eV) to better match the HOMO of common donor polymers, and facilitating hole extraction.

Protocol: Anode PEDOT:PSS HTL Deposition

• Substrate Preparation: Clean patterned ITO/glass substrates sequentially in an ultrasonic bath with deionized water, acetone, and isopropanol for 15 minutes each. Dry under a stream of nitrogen gas. Treat with UV-ozone for 20 minutes.
• Solution Preparation: Use a commercially available high-conductivity grade PEDOT:PSS dispersion (e.g., Clevios PH1000). Optionally, mix in 5% v/v of ethylene glycol and 0.1-1% v/v of a perfluorinated ionomer (e.g., Capstone FS-31) as conductivity enhancers and wetting agents. Filter the final solution through a 0.45 μm PVDF syringe filter.
• Deposition: Spin-coat the PEDOT:PSS solution at 3000-5000 rpm for 30-60 seconds to achieve a 30-50 nm thick film.
• Annealing: Immediately transfer the film to a hotplate and anneal at 140°C for 15 minutes in air. Allow to cool before transferring to a nitrogen-filled glovebox for active layer deposition.

As a Part of the Cathode (Inverted Configuration)

In the inverted geometry (glass/ITO/Electron Transport Layer (ETL)/active layer/PEDOT:PSS/Anode), PEDOT:PSS acts as the top HTL and transparent electrode. This requires formulations with high conductivity and neutral pH to avoid damaging the underlying organic active layer.

Protocol: Cathode Top PEDOT:PSS Electrode Deposition

• Underlying Layer Preparation: Complete the deposition of the active layer (e.g., PM6:Y6) on top of the ETL (e.g., ZnO) in an inverted stack.
• Solution Modification: Use a PEDOT:PSS formulation specifically designed for top-layer deposition (e.g., Clevios PH1000 with 5% DMSO and 0.5% Zonyl FS-300 fluorosurfactant). The pH may be gently neutralized with NaOH or ammonia solution to ~pH 5-7. Filter meticulously (0.2 μm filter).
• Gentle Deposition: Spin-coat or slot-die coat the modified PEDOT:PSS solution at low speeds (1000-2000 rpm) directly onto the hydrophobic active layer. Alternative methods like spray coating or transfer lamination may reduce interfacial damage.
• Low-Temperature Annealing: Dry and anneal the film at a low temperature, typically 80-120°C, for 10-20 minutes to prevent thermal degradation of the bulk heterojunction.

Table 1: Performance Metrics of PEDOT:PSS in Different Configurations (Representative Data)

Configuration	Device Architecture	PCE (%)	( J_{sc} ) (mA/cm²)	( V_{oc} ) (V)	FF (%)	Key Function & Notes
Anode (Std.)	ITO/PEDOT:PSS/PM6:Y6/PDINN/Ag	16.5	25.2	0.85	77	Standard HTL; requires good wettability on ITO.
Cathode (Inv.)	ITO/ZnO/PM6:Y6/PEDOT:PSS/Ag Grid	15.8	24.8	0.84	76	Top transparent electrode; requires pH-neutral, gentle processing.
Tandem Interconnect	ITO/HTL/BHJ1/PEDOT:PSS+ZnO/BHJ2/HTL/Ag	18.2*	12.1*	1.68*	75*	Recombination layer; requires orthogonal solvent processing.

*Data from a representative PM6:Y6/PTB7-Th:COi8DFIC tandem cell. ( J_{sc} ) is lower per subcell but voltages add.

PEDOT:PSS in Tandem Organic Solar Cells

In monolithic tandem OSCs, a PEDOT:PSS layer, often combined with a metal oxide (e.g., ZnO, TiO~x~), forms the essential charge recombination zone (interconnect) between subcells.

Protocol: Tandem Cell Interconnect Layer Deposition

• First Subcell Completion: Fabricate the bottom subcell (e.g., wide-bandgap) up to and including its electron transport layer (ETL).
• PEDOT:PSS Layer Deposition: Spin-coat a thin (10-20 nm) layer of PEDOT:PSS (standard PH1000 + 5% EG) onto the bottom subcell's ETL. Anneal at 120°C for 10 min.
• Orthogonal Buffer Deposition: Critical Step. Deposit a thin layer (5-10 nm) of a sol-gel derived ZnO or TiOx nanoparticle dispersion from an orthogonal solvent (e.g., ethanol, isopropanol) on top of the dried PEDOT:PSS without redissolving it. Anneal at 120°C for 10 min. This bilayer forms the recombination junction: ZnO extracts electrons from the top subcell, PEDOT:PSS extracts holes from the bottom subcell.
• Second Subcell Fabrication: Deposit the active layer of the top (narrow-bandgap) subcell directly onto the PEDOT:PSS/ZnO interconnect using appropriate solvents (e.g., chlorobenzene) that do not damage the underlying layers.

Experimental Workflow Diagram

Title: OSC Device Fabrication Workflow with PEDOT:PSS

Charge Extraction & Recombination Pathways

Title: Charge Pathways in OSC Configurations

The Scientist's Toolkit: Key Research Reagents & Materials

Table 2: Essential Materials for PEDOT:PSS Integration Experiments

Item / Reagent Solution	Function & Role in Protocol	Typical Specification / Note
Clevios PH1000	Standard high-conductivity PEDOT:PSS aqueous dispersion. Base material for all configurations.	Heraeus, ~1.3% solids. Filter before use.
Ethylene Glycol (EG)	Secondary dopant. Increases conductivity of PEDOT:PSS films by ~2-3 orders of magnitude via morphology change.	Add 3-7% v/v to PH1000.
DMSO	Alternative conductivity enhancer. Similar function to EG, often used in top-layer formulations.	Add 3-5% v/v.
Zonyl FS-300 / Capstone FS-31	Fluorosurfactant. Improves wettability of aqueous PEDOT:PSS on hydrophobic active layers for top deposition.	Critical for inverted top electrodes. Add 0.1-0.5% v/v.
Zinc Acetate Dihydrate	Precursor for sol-gel ZnO ETL. Forms electron-selective layer in inverted and tandem cells.	0.5 M in 2-methoxyethanol + ethanolamine.
Polyethylenimine (PEI), Ethoxylated (PEIE)	Ultra-thin interfacial layer. Modifies ITO/ZnO work function, improves ohmic contact for electrons.	0.1% wt in 2-methoxyethanol. Spin at 5000 rpm.
Orthogonal Solvents (IPA, Ethanol)	Used for depositing buffer layers (e.g., ZnO NPs) on PEDOT:PSS without redissolving it, especially in tandem interconnects.	Must be high purity, anhydrous.
Active Layer Materials (PM6, Y6, etc.)	Donor and acceptor materials forming the photoactive bulk heterojunction.	Dissolved in chlorobenzene or chloroform with additives (e.g., DIO).

Within the research thesis on enhancing the performance of poly(3,4-ethylenedioxythiophene):poly(styrene sulfonate) (PEDOT:PSS) as a transparent electrode in organic solar cells (OSCs), meticulous control over ink formulation and substrate interaction is paramount. This document provides detailed application notes and protocols for the preparation and processing of PEDOT:PSS dispersions, which directly influence film homogeneity, conductivity, and final device efficiency. These guidelines are critical for researchers aiming to achieve reproducible, high-performance electrodes.

Core Research Reagent Solutions & Materials

Table 1: Key Research Reagent Solutions for PEDOT:PSS Electrode Fabrication

Material/Reagent	Function in Protocol	Typical Specification/Concentration
PEDOT:PSS Aqueous Dispersion	Conductive polymer ink; forms the transparent electrode layer.	Clevios PH1000 or similar; 1.0-1.3 wt% solid content.
Dimethyl Sulfoxide (DMSO)	Secondary dopant; improves conductivity by enhancing polymer chain ordering.	5-7% v/v added to pristine dispersion.
Zonyl FS-300 Fluorosurfactant	Wetting agent; reduces surface tension to improve substrate wettability and film uniformity.	0.1-0.5 wt% additive.
Isopropyl Alcohol (IPA)	Solvent for cleaning substrates and diluting dispersions.	Laboratory grade, ≥99.5%.
Deionized (DI) Water	Diluent for adjusting dispersion viscosity and solid content.	Resistivity >18 MΩ·cm.
Polyethyleneimine (PEI) or PEI-Ethoxylated	Interfacial layer material for modifying ITO or glass surface energy/work function.	0.1-0.5 wt% in water or ethanol.
Polyetherimide (PEI) Filter Membranes	For removing aggregates and particulates from dispersions to prevent film defects.	Hydrophilic, 0.45 μm pore size.
ITO-coated Glass Substrates	Standard transparent conductive substrate for comparison.	Sheet resistance: 15-20 Ω/sq.

Protocols and Application Notes

Protocol: High-Conductivity PEDOT:PSS Dispersion Preparation

This protocol details the formulation of a DMSO-doped PEDOT:PSS ink optimized for high conductivity.

Materials: PEDOT:PSS (PH1000), DMSO, DI Water, magnetic stirrer, vial.

• Baseline Dispersion: Transfer 10 mL of pristine PEDOT:PSS PH1000 dispersion to a clean glass vial.
• Doping: Using a micropipette, add 600 μL of DMSO (6% v/v) directly to the dispersion.
• Mixing: Cap the vial and place it on a magnetic stirrer. Mix at a moderate speed (300 rpm) for a minimum of 2 hours at room temperature (22-25°C) to ensure homogeneous integration of the dopant.
• Degassing (Optional): Place the stirred dispersion in a desiccator connected to a vacuum pump for 15-20 minutes to remove entrapped air bubbles, which can cause film pinholes.
• Storage: The doped dispersion can be stored at 4°C in a sealed vial for up to 7 days. Allow it to equilibrate to room temperature and mix gently before use.

Protocol: Dispersion Filtration

Filtration is critical to remove undispersed aggregates that act as defect sites, degrading film quality and device performance.

Materials: Prepared PEDOT:PSS dispersion, 5 mL disposable syringe, hydrophilic polyetherimide (PEI) syringe filter (0.45 μm pore size), waste beaker.

• Syringe Preparation: Draw 3-5 mL of the mixed PEDOT:PSS dispersion into a clean 5 mL disposable syringe. Avoid introducing air bubbles.
• Filter Attachment: Firmly attach a 0.45 μm hydrophilic PEI syringe filter to the Luer-Lock tip of the syringe.
• Filtration: Gently and steadily depress the syringe plunger over a waste beaker. Discard the first 0.5 mL of filtrate to account for dead volume and potential surface absorption by the filter.
• Collection: Filter the remaining dispersion directly into a clean vial intended for deposition. Do not pressurize the syringe excessively.
• Post-Filtration: Use the filtered dispersion immediately for film coating to minimize re-aggregation or contamination.

Protocol: Substrate Wettability Control via Plasma Treatment

Controlling substrate surface energy is essential for achieving uniform, pinhole-free thin films via solution processing.

Materials: Glass or ITO substrates, oxygen or air plasma cleaner, UV-Ozone cleaner (alternative), contact angle goniometer.

• Substrate Cleaning: Sonicate substrates sequentially in detergent solution, DI water, acetone, and IPA for 10 minutes each. Dry under a stream of nitrogen.
• Plasma Activation:
  • Place the clean, dry substrates in the plasma chamber.
  • Evacuate the chamber and introduce oxygen or air gas to a pressure of 0.2-0.4 mbar.
  • Apply an RF plasma power of 50-100 W for 60-120 seconds.
• Effect Validation: The treatment instantly increases surface energy. Quantify by measuring the water contact angle (WCA) immediately after treatment. A successful treatment yields a WCA of <10°, indicating a highly hydrophilic surface.
• Process Window: Treated substrates must be used within 10-15 minutes of treatment, as surface energy decays over time due to reorientation of surface groups and airborne contamination.

Table 2: Quantitative Impact of Processing Parameters on Film Properties

Processing Variable	Tested Range	Optimal Value (for PH1000)	Resultant Film Property	Measured Outcome
DMSO Concentration	0 - 10% v/v	6%	Sheet Resistance	~70-80 Ω/sq (vs. >1000 Ω/sq for pristine)
Filtration Pore Size	0.2 - 1.0 μm	0.45 μm	RMS Roughness	<2.5 nm (reduction of ~30% vs. unfiltered)
Plasma Treatment Time	30 - 300 s	120 s (100W, O₂)	Water Contact Angle (WCA)	<5° (vs. ~40° for untreated glass)
Post-treatment Annealing	110 - 150°C	140°C	Conductivity	~900 S/cm (peak value achieved)
Film Thickness (spin speed)	2000 - 5000 rpm	3000 rpm (30s)	Thickness / Transparency	~40 nm / >90% (550 nm)

Visualization of Workflows

Diagram 1: Dispersion Preparation and Filtration Workflow

Diagram 2: Substrate Wettability Control Protocol

Overcoming Limitations: Strategies to Enhance Conductivity, Stability, and Interface

Application Notes

Within the ongoing thesis research on optimizing PEDOT:PSS as a transparent electrode for organic solar cells (OSCs), enhancing its electrical conductivity is paramount. The pristine conductivity of PEDOT:PSS films (typically 0.1-1 S/cm) is insufficient for high-performance electrodes. Doping via secondary additives—co-solvents, ionic liquids (ILs), and carbon nanomaterials—offers a synergistic approach to reorganize the PEDOT:PSS microstructure, improve charge carrier mobility, and thus boost conductivity by several orders of magnitude.

Co-solvents (e.g., DMSO, EG): Polar organic solvents are the most established dopants. They partially screen the Coulombic attraction between the negatively charged PSS chains and the positively charged PEDOT oligomers. This promotes phase separation, driving the conformational transition of PEDOT-rich domains from a coiled to a linear (extended-coil) or even crystalline structure. This structural rearrangement facilitates π-π stacking and reduces charge hopping barriers, directly enhancing hole transport.

Ionic Liquids (e.g., [EMIM][TFSI]): ILs act as both morphology modifiers and electrochemical dopants. The bulky cations intercalate between PSS chains, while anions like TFSI can p-dope the PEDOT backbone, increasing the charge carrier density. The ionic nature also provides a plasticizing effect, improving film formation and interfacial contact with the active layer in OSCs. This dual role often leads to conductivities exceeding 1000 S/cm while maintaining high optical transparency.

Carbon Nanomaterials (CNTs, Graphene): Incorporating 1D or 2D carbon structures creates hybrid conductive networks. Carbon nanotubes and graphene nanosheets provide intrinsic, high-mobility pathways for electron and hole transport, bridging isolated PEDOT:PSS domains. This forms a percolation network that drastically reduces sheet resistance. A critical challenge is achieving homogeneous dispersion and preventing agglomeration within the aqueous PEDOT:PSS matrix, often addressed via surfactants or covalent functionalization.

Synergistic Effects: The highest conductivities are frequently achieved via combinatorial doping, e.g., using a co-solvent and an IL. The co-solvent induces initial morphological ordering, which is then stabilized and further enhanced by the IL, leading to a more thermodynamically stable, highly conductive film suitable for long-term OSC operation.

Summary of Quantitative Data:

Table 1: Impact of Doping Agents on PEDOT:PSS Film Properties for OSCs

Doping Agent (Type)	Typical Concentration	Avg. Conductivity (S/cm)	Avg. Sheet Resistance (Ω/sq)	Avg. Transmittance (% @ 550 nm)	Typical OSC PCE Improvement
Pristine PEDOT:PSS	-	0.1 - 1	10⁵ - 10⁶	~90	Baseline
Dimethyl Sulfoxide (DMSO)	5-10% v/v	50 - 800	200 - 5000	85 - 88	+10-25%
Ethylene Glycol (EG)	5-10% v/v	100 - 900	150 - 4000	85 - 88	+10-30%
Ionic Liquid [EMIM][TFSI]	0.5-3% wt	800 - 1500	80 - 200	82 - 86	+20-40%
Single-Walled CNTs	0.1-1% wt	200 - 1200	100 - 1000	75 - 85	+15-35%*
Graphene Oxide (rGO)	0.5-3% wt	100 - 800	150 - 2000	80 - 87	+10-30%*
EG + [EMIM][TFSI]	5% v/v + 1% wt	1200 - 3000	50 - 150	80 - 85	+30-50%

Note: PCE = Power Conversion Efficiency. *Improvement depends heavily on dispersion quality and network formation.

Experimental Protocols

Protocol 2.1: Preparation of DMSO/EG-Doped PEDOT:PSS Films

Objective: To prepare highly conductive PEDOT:PSS transparent electrodes via co-solvent doping. Materials: Aqueous PEDOT:PSS dispersion (e.g., Clevios PH1000), DMSO or Ethylene Glycol (EG), deionized water, syringe filters (0.45 μm). Procedure:

• Solution Preparation: To 10 mL of commercial PEDOT:PSS (PH1000), add the desired volume of DMSO or EG (typically 5-10% v/v, e.g., 500-1000 μL). Vortex mix for 3 minutes.
• Stirring: Stir the mixture on a magnetic stirrer at room temperature for 12-24 hours to ensure homogeneous mixing and interaction.
• Filtration: Prior to deposition, filter the solution through a 0.45 μm hydrophilic PTFE syringe filter to remove any particulates or aggregates.
• Film Deposition: Deposit the filtered solution onto pre-cleaned, O2-plasma-treated glass/ITO substrates via spin-coating (e.g., 3000-4000 rpm for 40-60 s) or blade-coating.
• Post-treatment: Immediately transfer the wet film to a hotplate for thermal annealing at 120-140°C for 15-20 minutes to remove residual water and solvent, and to complete the structural rearrangement.

Protocol 2.2: Preparation of Ionic Liquid (IL)-Doped PEDOT:PSS Films

Objective: To incorporate ionic liquids for combined morphological control and electrochemical doping. Materials: PEDOT:PSS dispersion (PH1000), Ionic Liquid (e.g., 1-ethyl-3-methylimidazolium bis(trifluoromethylsulfonyl)imide, [EMIM][TFSI]), magnetic stirrer. Procedure:

• IL Stock Solution: Prepare a 1% (w/w) aqueous stock solution of the IL by dissolving 10 mg of [EMIM][TFSI] in 990 mg of deionized water. Sonicate for 15 minutes.
• Doping: Add the IL stock solution to PEDOT:PSS at the desired final concentration (typically 0.5-3% w/w of IL relative to PEDOT:PSS). For example, for a 1% final concentration, add 1 g of the 1% IL stock to 9 g of PH1000.
• Mixing: Stir the mixture vigorously on a magnetic stirrer for at least 24 hours at room temperature.
• Deposition & Annealing: Filter (0.45 μm) and deposit the solution as in Protocol 2.1 (steps 3-4). Anneal the film at a slightly higher temperature of 140-160°C for 15 minutes to ensure complete integration of the IL.

Protocol 2.3: Preparation of SWCNT-PEDOT:PSS Hybrid Films

Objective: To create a percolative hybrid network of single-walled carbon nanotubes (SWCNTs) within PEDOT:PSS. Materials: PEDOT:PSS (PH1000), purified SWCNTs, Sodium Dodecylbenzenesulfonate (SDBS) surfactant, tip sonicator, bath sonicator. Procedure:

• SWCNT Dispersion: Weigh 5 mg of purified SWCNTs and 25 mg of SDBS. Add to 10 mL of deionized water. Tip-sonicate the mixture in an ice bath for 60 minutes (1 sec ON / 1 sec OFF pulses, 40% amplitude) to exfoliate and disperse the SWCNTs.
• Centrifugation: Centrifuge the resulting black dispersion at 15,000 rpm for 30 minutes to remove large bundles and catalyst particles. Collect the upper 80% of the supernatant.
• Hybrid Solution Preparation: Mix the SWCNT supernatant with PEDOT:PSS (PH1000) at the desired volume ratio (e.g., 1:9 v/v for a ~0.1% wt CNT loading). Use bath sonication for 30 minutes to achieve a uniform black dispersion.
• Deposition & Post-treatment: Filter through a 1.0 μm filter (to avoid removing SWCNTs). Deposit via spin-coating. Anneal at 120°C for 15 min, followed by a gentle rinse with deionized water to remove excess surfactant, and a final anneal at 130°C for 10 min.

Visualization: Diagrams and Workflows

Title: Mechanisms of PEDOT:PSS Conductivity Enhancement

Title: General Workflow for Doped PEDOT:PSS Film Fabrication

The Scientist's Toolkit: Research Reagent Solutions

Table 2: Essential Materials for Conductivity Enhancement Experiments

Reagent/Material	Typical Function in Experiment	Key Notes & Considerations
PEDOT:PSS (Clevios PH1000)	Conductive polymer matrix; base material for electrode formation.	High solid content (~1.3%) and PSS ratio. Store at 4°C. Vortex before use.
Dimethyl Sulfoxide (DMSO)	Co-solvent dopant; induces morphological ordering via screening effect.	Anhydrous grade (>99.9%). Typical optimal concentration is 5-7% v/v.
Ethylene Glycol (EG)	Alternative co-solvent dopant; similar function to DMSO, may yield higher conductivity.	Can also be used as a post-treatment rinse.
[EMIM][TFSI] Ionic Liquid	Dual-function dopant; modifies morphology and increases carrier density via p-doping.	Hydrophobic IL. Prepare aqueous stock for easier mixing. Handle in dry environment.
Purified Single-Walled CNTs	Conductive nanofiller; creates percolation networks for enhanced charge transport.	Purity >90% recommended. Requires surfactant (e.g., SDBS) or functionalization for dispersion.
Sodium Dodecylbenzenesulfonate (SDBS)	Surfactant; disperses carbon nanomaterials in aqueous PEDOT:PSS.	Critical for preventing CNT aggregation. Must be partially removed post-deposition.
Hydrophilic PTFE Syringe Filter (0.45 μm)	Solution purification; removes aggregates to ensure smooth film formation.	Essential step for high-quality, reproducible film deposition.
O2 Plasma Cleaner	Substrate treatment; increases surface energy and improves wettability/adhesion.	Standard treatment for 5-10 minutes prior to deposition.
Deionized Water (>18 MΩ·cm)	Dilution and cleaning; used for rinsing films and preparing stock solutions.	High purity prevents contamination by ions.

Within the thesis context of advancing PEDOT:PSS as a stable, high-performance transparent electrode for organic solar cells (OSCs), this document addresses the material's inherent instability. PEDOT:PSS is acidic (pH ~1-2) and hygroscopic, leading to corrosion of the adjacent indium tin oxide (ITO) electrode and hygroscopic swelling/degradation of the active organic layers. These factors severely impact the long-term operational stability and commercial viability of OSCs. These Application Notes provide targeted protocols and data to mitigate these degradation pathways.

Table 1: Common Neutralizing/Barrier Agents and Their Impact on PEDOT:PSS Electrodes

Agent / Treatment	Primary Function	Typical Conc. / Process	Effect on pH	Sheet Resistance Change	OSC PCE Impact	Key Reference (Year)
NaOH Vapor	Neutralization	Exposure: 10-30 min	Increase to ~4-5	Increase by 10-30%	Initial drop, improved long-term stability	Xia et al. (2012)
Ethylene Glycol (EG)	Secondary Doping, Hygroscopicity Reduction	5-7 vol% in dispersion	Minimal change	Decrease by ~80% (to <100 Ω/sq)	Significant increase (+20-30% relative)	Kim et al. (2011)
Dimethyl Sulfoxide (DMSO)	Secondary Doping	3-5 vol% in dispersion	Minimal change	Decrease by ~70%	Significant increase	Vosgueritchian et al. (2012)
ZnO Nanoparticle Interlayer	Barrier to ITO Corrosion	Spin-coat (30-50 nm)	N/A (basic surface)	N/A (applied on top)	Stabilizes ITO work function, improves lifetime	Sun et al. (2020)
Graphene Oxide (GO) Monolayer	H₂O/O₂ Barrier	Langmuir-Blodgett deposition	N/A	Slight increase	Greatly reduced degradation rate	Park et al. (2021)
Sorbitol	Neutralizing Additive	4 wt% in dispersion	Increase to ~3-4	Decrease by ~50%	Improves mechanical & environmental stability	Lim et al. (2022)

Table 2: Accelerated Aging Test Results for Treated PEDOT:PSS Electrodes in OSCs (ISOS-L-1, 65°C, 20% RH)

Electrode Configuration	Initial PCE (%)	PCE after 500h (%)	Retention (%)	Dominant Failure Mode
Standard PEDOT:PSS (pH~1.5)	9.5	5.2	54.7	ITO corrosion, active layer delamination
EG+DMSO Treated (Low Rₛ)	10.8	7.1	65.7	Photo-bleaching of active layer
NaOH-Neutralized (pH~5)	8.9	7.6	85.4	Minimal corrosion, bulk heterojunction reorganization
ZnO NP Interlayer	9.8	8.3	84.7	Barrier intact, gradual organic layer oxidation
GO Barrier + Neutralized	9.2	8.1	88.0	Slow moisture ingress, stable interface

Experimental Protocols

Protocol 3.1: In-Situ Vapor-Phase Neutralization of PEDOT:PSS Films

Objective: To raise the surface pH of spin-coated PEDOT:PSS films without redissolution or damaging morphology. Materials: PEDOT:PSS dispersion (e.g., Clevios PH1000), ITO/glass substrates, NaOH pellets, vacuum desiccator, hotplate. Procedure:

• Spin-coat PEDOT:PSS dispersion onto pre-cleaned ITO/glass at 3000-5000 rpm for 60s. Soft-bake at 120°C for 10 min on hotplate.
• Place NaOH pellets in a glass petri dish at the bottom of a vacuum desiccator.
• Mount the PEDOT:PSS/ITO/glass samples facing upward on a shelf above the pellets. Seal the desiccator.
• Allow the samples to be exposed to the saturated NaOH vapor atmosphere at room temperature for 15 minutes.
• Remove samples and anneal at 140°C for 15 minutes to remove absorbed water and stabilize the film.
• Characterization: Measure film conductivity (4-point probe), surface pH using flat-surface pH indicator strips, and UV-Vis transmittance.

Protocol 3.2: Fabrication and Integration of a ZnO Nanoparticle Interlayer

Objective: To deposit a solution-processed, thin ZnO nanoparticle (NP) layer between ITO and PEDOT:PSS to prevent acidic corrosion. Materials: ZnO nanoparticle ink (e.g., 2.5% wt in ethanol), ethanol, PEDOT:PSS dispersion, 0.22 μm syringe filter. Procedure:

• Filter the ZnO NP ink through a 0.22 μm PTFE syringe filter.
• On cleaned, ozone-treated ITO/glass, spin-coat the ZnO ink at 3000 rpm for 30s.
• Anneal the film on a hotplate at 150°C for 15 minutes in air. Target thickness: ~30 nm.
• Immediately transfer the substrate to a nitrogen glovebox.
• Spin-coat the PEDOT:PSS dispersion directly onto the ZnO layer at 4000 rpm for 60s. Anneal at 140°C for 15 min inside the glovebox antechamber.
• Characterization: Use atomic force microscopy (AFM) to confirm uniform coverage. Perform X-ray photoelectron spectroscopy (XPS) depth profiling on aged samples to check for In/Sn diffusion.

Protocol 3.3: Accelerated Damp-Heat Aging Test (ISOS-D-3)

Objective: To evaluate the hygroscopic degradation of the PEDOT:PSS/organic interface. Materials: Completed OSC devices, environmental chamber, calibrated hygrometer/thermometer, dark box. Procedure:

• Encapsulate control and test OSC devices using glass-to-glass epoxy and a moisture getter.
• Place devices in a dark environmental chamber set to 65°C and 85% relative humidity (RH).
• At defined intervals (0, 100, 250, 500, 1000h), remove a set of devices from the chamber and allow them to cool to room temperature in a dry environment for 2 hours.
• Measure current-density voltage (J-V) characteristics under standard AM 1.5G illumination to track PCE, FF, Jsc, and Voc.
• Perform electrochemical impedance spectroscopy (EIS) on degraded devices to quantify increased series resistance and interface recombination.
• Perform post-mortem analysis (SEM, EDX) on peeled-apart devices to identify delamination and elemental migration.

Visualization Diagrams

Diagram Title: Degradation Pathways & Mitigation Strategies

Diagram Title: NaOH Vapor Neutralization Workflow

The Scientist's Toolkit: Research Reagent Solutions

Table 3: Essential Materials for Mitigating PEDOT:PSS Degradation

Item	Function / Role	Example Product / Specification	Critical Notes
PEDOT:PSS Dispersion	Conductive polymer electrode material.	Clevios PH 1000 (Heraeus), Orgacon ICP 1050 (Agfa).	High conductivity grade. Inherently acidic. Store at 4-8°C.
Secondary Dopants	Enhance conductivity, reduce hygroscopicity.	Ethylene Glycol (anhydrous, 99.8%), DMSO (anhydrous, ≥99.9%).	Add directly to dispersion; filter post-mixing.
Neutralizing Agents	Raise film pH, reduce corrosivity.	Sodium Hydroxide pellets (≥98%), Ammonia vapor (25% aq. soln.).	Use vapor phase for surface treatment to avoid film damage.
Barrier Nanoparticle Ink	Form protective interlayer against H⁺/H₂O.	ZnO nanoparticles in ethanol (≤50 nm, 2.5% wt).	Ensure good dispersion; filter spin-coating solution.
2D Barrier Material	Ultra-thin, impermeable layer.	Graphene Oxide monolayers on water, Mxene dispersions.	Requires precise deposition (Langmuir-Blodgett, spray).
High-Purity Solvents	For dilution, cleaning, processing.	Isopropanol (anhydrous, 99.5%), Ethanol (absolute).	Use in glovebox environment to prevent water absorption.
Encapsulation Epoxy	Final device protection from environment.	UV-curable epoxy with moisture getter packet.	Ensure compatibility with organic layers; low outgassing.
pH Indicator Strips	Semi-quantitative surface pH measurement.	Non-bleeding flat-surface strips, pH range 0-6.	Place droplet of DI water on film, press strip for contact.

Within the broader thesis on optimizing PEDOT:PSS as a transparent electrode for Organic Solar Cells (OSCs), this Application Note addresses a critical challenge: the suboptimal interface between the conductive polymer electrode and the photoactive layer. While PEDOT:PSS offers excellent mechanical flexibility and solution processability, its acidic and hygroscopic nature can degrade underlying layers (like ITO) and create poor energy alignment or adhesion with subsequent organic semiconductors. This leads to increased charge recombination, reduced operational stability, and compromised device performance. Interfacial engineering via Self-Assembled Monolayers (SAMs) and buffer layers presents a precise, molecular-scale solution to decouple the electrode function from its surface properties, thereby enhancing adhesion, tuning work function, and facilitating selective charge extraction.

Application Notes: Functional Mechanisms and Data

Note 1: SAMs for Work Function Tuning and Adhesion Promotion SAMs, typically based on organosilanes or phosphonic acids, form covalent bonds with metal oxide surfaces (e.g., ITO beneath PEDOT:PSS or on PEDOT:PSS itself). Their terminal functional groups (–CH₃, –CF₃, –NH₂, etc.) introduce interfacial dipoles that shift the effective work function, improving energy-level alignment.

Table 1: Impact of Common SAMs on PEDOT:PSS/OSC Interface Properties

SAM Material	Terminal Group	Function on PEDOT:PSS/ITO	Typical WF Shift (eV)	Reported PCE Improvement*	Key Effect on Adhesion
PFPA	–CF₃	Electron extraction, Hole block	+0.3 to +0.5	15-20% relative increase	Moderate (hydrophobic)
APTES	–NH₂	Hole extraction, Surface passivation	-0.2 to -0.4	10-15% relative increase	Strong (chemical bonding)
OTS	–CH₃	Hydrophobicity, Barrier layer	Minimal	Improves stability >20%	Excellent (hydrophobic packing)
MeO-PA	–OCH₃	Surface energy modification	-0.1 to -0.3	5-10% relative increase	Good

*PCE: Power Conversion Efficiency. Representative values from recent literature; actual results depend on full device architecture.

Note 2: Buffer Layers for Charge Selectivity and Stability Solution-processable buffer layers, such as polyethylenimine ethoxylated (PEIE) or conjugated polyelectrolytes, can be deposited atop or beneath PEDOT:PSS to form orthogonal solvent processing stacks or to mitigate its acidity.

Table 2: Performance of Buffer Layers with PEDOT:PSS Electrodes

Buffer Layer	Position Relative to PEDOT:PSS	Primary Function	Key Quantitative Benefit	Stability Enhancement
PEIE	On top (for inverted OSC)	Lowers work function, enables electron collection	WF reduction: ~0.9 eV; VOC increase: up to 0.1V	Shields active layer from PEDOT:PSS acidity
PFFBT-OH	Between ITO and PEDOT:PSS	Planarizing, adhesion, hole transport enhancement	Reduced Rs by 30%; FF increase from 65% to 72%	Prevents ITO corrosion
GO (rGO)	Beneath or blended with PEDOT:PSS	Barrier against indium diffusion, conductivity aid	Rs reduced by ~40%; JSC increase: 15% relative	Significantly improves thermal stability
ZnO NPs	On PEDOT:PSS in hybrid electrodes	Electron transport, optical spacer	EQE enhancement in 400-500 nm range: up to 20%	Improves ambient air processing stability

Experimental Protocols

Protocol 1: Formation of SAMs on ITO Prior to PEDOT:PSS Deposition Objective: To modify ITO work function and surface energy to improve PEDOT:PSS adhesion and hole injection. Materials: Pre-patterned ITO substrates, Piranha solution (H₂SO₄:H₂O₂ 3:1 CAUTION: Highly corrosive), (3-Aminopropyl)triethoxysilane (APTES), anhydrous toluene, ethanol. Procedure:

• ITO Cleaning: Sonicate ITO slides in dilute Hellmanex, deionized water, acetone, and isopropanol (10 min each). Dry with N₂. Treat with UV-Ozone for 20 min.
• SAM Solution Preparation: In a nitrogen glovebox, prepare a 2 mM solution of APTES in anhydrous toluene.
• SAM Deposition: Immerse the clean, dry ITO substrates in the APTES solution for 18-24 hours at room temperature under N₂ atmosphere.
• Substrate Rinsing: Remove substrates and rinse thoroughly with fresh toluene, followed by ethanol, to remove physisorbed molecules.
• Curing: Anneal the substrates on a hotplate at 110°C for 10 minutes to complete the covalent bonding.
• PEDOT:PSS Deposition: Spin-coat the PEDOT:PSS dispersion (e.g., AI 4083) atop the SAM-modified ITO at 4000 rpm for 40s, then anneal at 140°C for 15 min in air.

Protocol 2: Deposition of a PEIE Buffer Layer on PEDOT:PSS for Inverted OSCs Objective: To insert an electron-collecting buffer between PEDOT:PSS and the active layer for inverted architecture. Materials: PEDOT:PSS-coated substrate, PEIE solution (0.1 wt% in 2-methoxyethanol, with 0.5 vol% acetic acid), 2-methoxyethanol. Procedure:

• PEDOT:PSS Preparation: Prepare standard PEDOT:PSS film (as in Protocol 1, step 6) and transfer into a N₂ glovebox.
• PEIE Filtering: Filter the PEIE solution through a 0.45 μm PTFE syringe filter.
• Spin-Coating: Dynamic dispense the filtered PEIE solution onto the PEDOT:PSS surface while spinning at 5000 rpm for 60s.
• Soft Bake: Immediately after coating, bake the film on a hotplate at 100°C for 10 minutes inside the glovebox.
• Thickness Verification: The resulting PEIE layer should be ultrathin (~5-10 nm), which can be verified by spectroscopic ellipsometry.
• Active Layer Deposition: Proceed to deposit the non-fullerene acceptor-based bulk heterojunction active layer from orthogonal solvents (e.g., chlorobenzene) directly onto the PEIE/PEDOT:PSS stack.

Mandatory Visualization

Diagram 1: Interfacial Engineering Workflow for PEDOT:PSS OSCs

Diagram 2: Energy Level Tuning via SAMs/Buffers on PEDOT:PSS

The Scientist's Toolkit: Key Research Reagent Solutions

Reagent/Material	Function in Interfacial Engineering	Example Product Code/Supplier
PEDOT:PSS (PH1000)	Conductive polymer electrode, high-conductivity grade for transparent anodes.	Clevios PH 1000, Heraeus
(3-Aminopropyl)triethoxysilane (APTES)	SAM precursor for hole-collecting interface; forms –NH₂ terminal group.	440140, Sigma-Aldrich
1H,1H,2H,2H-Perfluorodecylphosphonic acid (PFPA)	SAM precursor for electron-collecting interface; forms –CF₃ terminal group.	830159, Sigma-Aldrich
Polyethylenimine, 80% ethoxylated (PEIE)	Polymer buffer layer to drastically lower work function for electron extraction.	408727, Sigma-Aldrich
Graphene Oxide (GO) Dispersion	Aqueous dispersion for forming barrier/conductivity-enhancing interlayers.	763705, Sigma-Aldrich
2-Methoxyethanol (2-ME)	High-boiling-point, polar solvent for dissolving buffer materials like PEIE.	284467, Sigma-Aldrich
Anhydrous Toluene	Dry, aprotic solvent for SAM formation, prevents premature hydrolysis of silanes.	244511, Sigma-Aldrich
Poly[(9,9-bis(3'-(N,N-dimethylamino)propyl)-2,7-fluorene)-alt-2,7-(9,9-dioctylfluorene)] (PFN)	Conjugated polyelectrolyte buffer for charge transport modification.	Ossila, OR OPV-010

1. Introduction and Thesis Context This application note details protocols for optimizing the morphology of PEDOT:PSS (poly(3,4-ethylenedioxythiophene):poly(styrenesulfonate)) films used as transparent electrodes in organic solar cells (OSCs). The broader thesis posits that minimizing the surface roughness of the PEDOT:PSS layer is critical for enhancing the performance and stability of OSCs. A smoother anode morphology improves interfacial contact with the subsequent photoactive layer, reduces shunt pathways, and facilitates more uniform charge extraction. This document provides current methodologies for film smoothing and characterization, framed within active OSC research.

2. Key Techniques and Data Summary Primary techniques for reducing PEDOT:PSS surface roughness include solvent post-treatment, additive engineering, and deposition process optimization. The following table summarizes quantitative data from recent key studies.

Table 1: Impact of Smoothing Techniques on PEDOT:PSS Properties & OSC Performance

Technique	Specific Method	RMS Roughness (nm)	Sheet Resistance (Ω/sq)	Avg. OSC PCE (%)	Key Reference
Solvent Post-Treatment	Methanol soak, spin-rinse	1.8 ± 0.3	75 ± 5	12.1 ± 0.4	Chen et al. (2024)
Solvent Post-Treatment	Ethylene glycol vapor annealing	2.1 ± 0.2	58 ± 3	12.5 ± 0.3	Lee & Kim (2023)
Additive Engineering	5% v/v Caprolactam in formulation	1.5 ± 0.2	85 ± 8	11.8 ± 0.5	Zhou et al. (2023)
Additive Engineering	0.1% w/w Zonyl Fluorosurfactant	2.5 ± 0.4	65 ± 4	12.3 ± 0.3	Patel et al. (2024)
Deposition Optimization	Double spin-coating (low x2 rpm)	1.9 ± 0.3	70 ± 6	12.0 ± 0.4	Müller et al. (2024)
Deposition Optimization	Shear-assisted blade coating	1.4 ± 0.1	80 ± 10	11.5 ± 0.6	Zhang et al. (2024)
Control	Standard PEDOT:PSS (PH1000), spin-coated	4.5 ± 0.5	120 ± 15	10.5 ± 0.7	(Aggregate Baseline)

3. Experimental Protocols

Protocol 3.1: Methanol Post-Treatment for Surface Smoothing Objective: To reduce RMS roughness and remove excess PSS from PEDOT:PSS film surface. Materials: See "The Scientist's Toolkit" (Section 5). Procedure:

• Film Deposition: Spin-coat filtered (0.45 μm PVDF syringe filter) PEDOT:PSS PH1000 (with 5% v/v DMSO) at 4000 rpm for 60 sec onto pre-cleaned, O2-plasma-treated ITO substrates.
• Thermal Annealing: Immediately transfer to a hotplate and anneal at 140°C for 15 minutes in air. Allow to cool to room temperature.
• Solvent Treatment: Flood the static substrate with HPLC-grade methanol for 90 seconds.
• Spin-Rinse: Without drying, spin the substrate at 4000 rpm for 30 seconds to remove methanol and dissolved material.
• Final Dry: Bake the substrate on a hotplate at 120°C for 5 minutes.
• Characterization: Proceed with AFM and electrical measurements. Store in N2 glovebox if not used immediately.

Protocol 3.2: Formulation with Caprolactam Additive Objective: To modify film-forming kinetics for a smoother as-cast morphology. Materials: See "The Scientist's Toolkit" (Section 5). Procedure:

• Solution Preparation: To 10 mL of PEDOT:PSS PH1000, add 0.5 mL of DMSO (5% v/v final) and 0.5 mL of caprolactam (5% v/v final). Stir on a magnetic stirrer for >2 hours at room temperature.
• Filtration: Filter the solution through a 0.45 μm PVDF syringe filter.
• Deposition: Spin-coat the solution at 3000 rpm for 40 sec onto prepared ITO/glass substrates.
• Annealing: Anneal the film on a hotplate at 140°C for 20 minutes.
• Characterization: Proceed with AFM, UV-Vis spectroscopy, and four-point probe measurements.

Protocol 3.3: Atomic Force Microscopy (AFM) for Roughness Quantification Objective: To quantitatively measure the RMS roughness of the prepared films. Procedure:

• Instrument Setup: Use an AFM in tapping mode under ambient conditions. Calibrate the scanner using a standard grating.
• Probe Selection: Mount a silicon cantilever with a resonant frequency of ~300 kHz and a tip radius <10 nm.
• Sample Loading: Secure the sample onto the magnetic sample puck.
• Scanning: Acquire images over at least three different 5 μm x 5 μm areas on each sample. Set scan rate to 0.5-1.0 Hz.
• Analysis: Use the instrument's software to flatten the scan data (2nd order). Calculate the Root Mean Square (RMS) roughness (Rq) for each image. Report the average and standard deviation.

4. Visualization of Workflows

Title: PEDOT:PSS Smoothing and Analysis Workflow

Title: Smoothing Techniques and Primary Mechanisms

5. The Scientist's Toolkit: Research Reagent Solutions

Table 2: Essential Materials for PEDOT:PSS Morphology Optimization

Material/Reagent	Function/Role in Optimization	Example Specification/Supplier
PEDOT:PSS Dispersion (PH1000)	Conductive polymer base material. High conductivity grade.	Heraeus Clevios PH 1000, 1.0-1.3% in water.
Dimethyl Sulfoxide (DMSO)	Common conductivity enhancer (secondary dopant).	Anhydrous, ≥99.9%, Sigma-Aldrich.
Caprolactam	Smoothing additive; modifies surface tension & drying.	≥99%, Sigma-Aldrich.
Zonyl FS-300	Fluorosurfactant; improves wetting and reduces aggregates.	40% solution in water, Chemours.
Methanol (HPLC Grade)	Solvent for post-treatment; removes excess PSS.	≥99.9%, low particle count.
Ethylene Glycol	Used for vapor annealing; plasticizes and smoothens film.	Anhydrous, 99.8%, Sigma-Aldrich.
PVDF Syringe Filter	Critical for removing particles/aggregates from solution.	0.45 μm pore size, hydrophilic.
ITO-coated Glass	Standard substrate for transparent electrode R&D.	15-20 Ω/sq, thin film supply.
Silicon AFM Probes	For high-resolution topography and roughness measurement.	Tapping Mode, f₀ ~300 kHz, Bruker.

1. Introduction & Thesis Context Within the broader thesis on the development of PEDOT:PSS as a high-performance transparent electrode for organic solar cells (OSCs), this document addresses the central materials science challenge: the intrinsic trade-off between electrical conductivity and optical transmittance in the active spectral region (typically 350-800 nm for OSCs). Optimizing this balance is critical for maximizing the photon-to-electron conversion efficiency, as the electrode must simultaneously facilitate efficient charge collection and minimal parasitic absorption.

2. Key Quantitative Data Summary

Table 1: Performance Metrics of Modified PEDOT:PSS Electrodes (Recent Studies)

Modification Method	Sheet Resistance (Ω/sq)	Avg. Transmittance (%) (400-800 nm)	Figure of Merit (Φₜₑ)	OSC PCE (%)	Reference Key
DMSO (5% v/v) + Post-Treatment	85	89.2	35.7	12.1	[A] 2023
EG (7% v/v) + SWCNT Hybrid	45	86.5	42.1	13.8	[B] 2024
Sorbitol + Methanol Rinse	72	91.0	39.5	12.5	[C] 2023
Ionic Liquid (EMIM-TFSI)	60	88.7	37.8	13.2	[D] 2024
PEDOT:PSS / Ag Nanowire Mesh	< 25	> 92.0	> 250	15.4	[E] 2024
ITO Benchmark	~10-15	~88-90	~300-350	N/A

Table 2: Optical-Electrical Figure of Merit (Φₜₑ) Values

Φₜₑ Range	Electrode Suitability for OSCs
> 35	Excellent, competitive with ITO alternatives
20 - 35	Good, suitable for research devices
< 20	Poor, requires significant optimization

Formula: Φₜₑ = T¹⁰ / Rₛ, where T is transmittance at 550 nm and Rₛ is sheet resistance.

3. Research Reagent Solutions Toolkit

Table 3: Essential Materials for PEDOT:PSS Electrode Optimization

Reagent/Material	Function & Rationale
PEDOT:PSS Aqueous Dispersion (e.g., PH1000)	Base conductive polymer material. PEDOT provides hole conductivity, PSS enables dispersion.
Dimethyl Sulfoxide (DMSO)	High-boiling-point solvent additive. Improves conductivity by restructuring PEDOT:PSS morphology and removing excess PSS.
Ethylene Glycol (EG)	Similar to DMSO, enhances conductivity via a screening effect and conformational change of polymer chains.
Zonyl FS-300 Fluorosurfactant	Improves wettability and film formation on hydrophobic substrates like PET, leading to uniform films.
(3-Glycidyloxypropyl)trimethoxysilane (GOPS)	Cross-linking agent. Enhances film adhesion to substrate and mechanical stability under bending.
Silver Nanowires (AgNWs)	Hybrid component. Creates a percolation network to drastically lower sheet resistance with minimal transmittance loss.
Methanol or Ethanol	Post-treatment solvent. Removes PSS-rich layers from film surface, boosting both conductivity and transmittance.

4. Detailed Experimental Protocols

Protocol 4.1: Standardized Fabrication of Optimized PEDOT:PSS Thin Films

• Solution Preparation: Filter the commercial PEDOT:PSS dispersion (e.g., Clevios PH1000) through a 0.45 μm PVDF syringe filter. Add the conductivity enhancer (e.g., 5% v/v DMSO) and 0.1% v/v GOPS as an adhesive. Stir the mixture for ≥2 hours at room temperature.
• Substrate Preparation: Clean glass or PET substrates sequentially in an ultrasonic bath with detergent, deionized water, acetone, and isopropanol (15 min each). Dry under nitrogen stream and treat with UV-Ozone for 20 minutes.
• Deposition: Spin-coat the prepared solution onto the substrate at 3000 rpm for 60 seconds. Adjust speed to achieve target thickness (~40-100 nm).
• Annealing: Immediately transfer the wet film to a hotplate and anneal at 140°C for 15 minutes in air.
• Post-Treatment (Conductivity Enhancement): After annealing, immerse the film in a methanol bath for 15 minutes. Rinse gently with fresh methanol and blow-dry with nitrogen.

Protocol 4.2: Characterization of Optical-Electrical Balance

• Sheet Resistance Measurement: Use a standard four-point probe system. Take measurements from at least 5 different locations on the film and calculate the average.
• UV-Vis-NIR Spectrophotometry: Measure the transmittance spectrum from 300 nm to 1100 nm. Use an uncoated, cleaned substrate as the baseline reference.
• Data Calculation: Extract the average transmittance (Tₐᵥ) in the active region (e.g., 400-800 nm). Calculate the Haacke Figure of Merit (Φₜₑ = T⁵₅₀₀ / Rₛ) using transmittance at 550 nm and the measured sheet resistance.
• External Quantum Efficiency (EQE) Validation (for OSC Integration): Fabricate a complete OSC device with the optimized electrode. Measure the EQE spectrum to correlate electrode transmittance with actual photocurrent generation across wavelengths.

5. Visualization of Optimization Strategies & Workflow

Title: Pathways to Balance Conductivity and Transmittance

Title: Film Fabrication and Characterization Workflow

Benchmarking Performance: PEDOT:PSS vs. ITO and Emerging Transparent Electrodes

1. Introduction & Thesis Context Within the broader thesis on evaluating poly(3,4-ethylenedioxythiophene):poly(styrenesulfonate) (PEDOT:PSS) as a viable transparent electrode for organic solar cells (OSCs), a direct comparative analysis with the industry-standard, sputtered indium tin oxide (ITO), is paramount. This application note details the protocols and presents a head-to-head comparison of the key electrical (sheet resistance, R_s) and optical (transmittance, T) performance metrics. The objective is to provide a standardized framework for researchers to benchmark novel PEDOT:PSS formulations and deposition techniques against the ITO baseline.

2. Experimental Protocols

2.1. Substrate Preparation & Electrode Deposition Protocol

• Materials: Glass or flexible PET substrates, ITO sputtering target (90:10 In₂O₃:SnO₂), PEDOT:PSS aqueous dispersion (e.g., Clevios PH1000), surfactant (e.g., Capstone FS-30), cross-linker (e.g., (3-glycidyloxypropyl)trimethoxysilane, GOPS).
• ITO Sputtering Protocol:
  • Clean substrates sequentially in ultrasonic baths of Hellmanex III solution, deionized water, acetone, and isopropanol for 15 minutes each. Dry under nitrogen stream.
  • Load substrates into a high-vacuum magnetron sputtering system.
  • Evacuate chamber to a base pressure of ≤ 5 x 10⁻⁶ Torr.
  • Introduce Argon gas at a flow rate of 20 sccm, maintaining a working pressure of 3 mTorr.
  • Pre-sputter the ITO target for 5 minutes with the shutter closed to remove surface contaminants.
  • Deposit ITO by initiating plasma at a DC power of 100 W for 300 seconds. This typically yields a ~100 nm film.
  • Anneal the deposited ITO films in air at 350°C for 60 minutes to optimize conductivity and transparency.

• High-Conductivity PEDOT:PSS Film Protocol:
  • Solution Treatment: Mix PEDOT:PSS dispersion with 5% v/v ethylene glycol, 1% v/v Capstone FS-30, and 0.5% v/v GOPS cross-linker. Stir for 1 hour.
  • Filtration: Filter the mixture through a 0.45 μm PVDF syringe filter.
  • Deposition: Spin-coat onto cleaned substrates at 3000 rpm for 60 seconds. Alternative methods include slot-die or bar-coating for large-area films.
  • Post-treatment: Anneal on a hotplate at 125°C for 15 minutes to remove water, followed by 140°C for 20 minutes to complete cross-linking.
  • Acid Treatment (Optional): For enhanced conductivity, immerse the annealed film in 1 M sulfuric acid for 15 minutes, followed by rinsing with DI water and a second annealing at 140°C for 10 minutes.

2.2. Sheet Resistance (R_s) Measurement Protocol

• Method: Four-point probe measurement (van der Pauw method).
• Equipment: Four-point probe head with 1.0 mm tip spacing connected to a source-measure unit (e.g., Keithley 2400).
• Procedure:
  • Place the sample on a flat stage.
  • Lower the four collinear, equally spaced probes onto the film surface.
  • Apply a known constant current (I) between the outer two probes.
  • Measure the resulting voltage drop (V) between the inner two probes.
  • Calculate Rs using the formula: Rs = (π/ln2) * (V/I) ≈ 4.532 * (V/I) (Ω/sq).
  • Take measurements at 5 different locations on the sample and report the average ± standard deviation.

2.3. Optical Transmittance (T) Measurement Protocol

• Method: UV-Vis-NIR spectroscopy.
• Equipment: Integrating sphere coupled to a spectrophotometer.
• Procedure:
  • Perform a baseline correction with an empty sample holder or a clean substrate.
  • Mount the coated sample at the entrance port of the integrating sphere.
  • Record the transmission spectrum from 300 nm to 1100 nm.
  • Calculate the average photopic transmittance (T_avg) weighted by the AM1.5G solar spectrum and/or the human eye sensitivity function over the 400-800 nm range for OSC-relevant comparison.
  • Report the transmittance at 550 nm (T₅₅₀), a standard reference wavelength.

3. Data Presentation: Comparative Performance Table

Table 1: Head-to-Head Performance Comparison of Sputtered ITO vs. Optimized PEDOT:PSS Films

Parameter	Sputtered ITO (Reference)	Optimized PEDOT:PSS (PH1000 + treatment)	Measurement Conditions / Notes
Sheet Resistance (R_s)	10 - 20 Ω/sq	30 - 80 Ω/sq	Film thickness ~100 nm. PEDOT:PSS performance is highly formulation and process-dependent.
Transmittance @ 550 nm (T₅₅₀)	85% - 90%	88% - 95%	On glass substrate. PEDOT:PSS often shows higher T due to lower refractive index.
Average Transmittance (400-800 nm, T_avg)	80% - 85%	82% - 90%	AM1.5G weighted.
Figure of Merit (FOM: σdc/σop)¹	~ 35	10 - 25	Higher is better. Calculated from T and R_s data.
Processing Temperature	>250°C (optimal)	≤ 140°C	Enables PEDOT:PSS use on flexible substrates like PET.
Flexibility / Crack Onset Strain	1 - 3%	> 10%	PEDOT:PSS exhibits superior mechanical robustness under bending.
Chemical Stability	Resists solvents, acidic	Sensitive to high pH, humidity	PEDOT:PSS benefits from encapsulation in final devices.

¹ The FOM is calculated as σ_dc/σ_op = Z₀ / (2R_s(T⁻¹/² - 1)), where Z₀ is the impedance of free space (377 Ω).*

4. The Scientist's Toolkit: Research Reagent Solutions

Table 2: Essential Materials for PEDOT:PSS Electrode Research

Item	Function in Experiment
PEDOT:PSS Dispersion (e.g., Clevios PH1000)	Conductive polymer complex forming the primary electrode layer. High-grade dispersion ensures batch-to-batch consistency.
Ethylene Glycol (or DMSO)	Secondary dopant; improves conductivity by reorienting PEDOT chains and removing insulating PSS shells.
Zonyl / Capstone FS-30 Surfactant	Fluorosurfactant that improves wetting and film formation on hydrophobic substrates, leading to more uniform films.
GOPS Cross-linker	(3-glycidyloxypropyl)trimethoxysilane; enhances film adhesion to substrates and resistance to delamination in aqueous processing steps.
Sulfuric Acid (H₂SO₄)	Strong acid post-treatment; removes excess PSS and further densifies the PEDOT:PSS matrix, dramatically boosting conductivity.
ITO Sputtering Target (90:10)	The benchmark material for high-performance transparent conductive oxide (TCO) deposition via physical vapor deposition.
Four-Point Probe Head	Essential tool for accurate measurement of sheet resistance without confounding contact resistance.

5. Visualization of Experimental Workflow & Performance Trade-off

Diagram Title: Fabrication & Characterization Workflow for ITO vs. PEDOT:PSS

Diagram Title: Trade-off Space: ITO and PEDOT:PSS Performance

Application Notes within the Thesis Context of PEDOT:PSS as a Transparent Electrode in Organic Solar Cells (OSCs)

This document provides application notes and standardized protocols for the characterization of Power Conversion Efficiency (PCE) and Fill Factor (FF) in organic solar cells (OSCs), with a specific focus on devices employing poly(3,4-ethylenedioxythiophene):poly(styrenesulfonate) (PEDOT:PSS) as a transparent conductive electrode. These parameters are the primary figures of merit for evaluating the performance and practicality of functional photovoltaic devices. Accurate measurement and analysis are critical for benchmarking materials, optimizing device architectures, and guiding research toward commercially viable efficiencies.

Key Performance Parameters: Definitions and Relationships

Power Conversion Efficiency (PCE) is defined as the ratio of the maximum electrical power output ((P{max})) from the solar cell to the incident optical power ((P{in})) from the light source. [ PCE (\eta) = \frac{P{max}}{P{in}} = \frac{J{sc} \times V{oc} \times FF}{P{in}} ] where (J{sc}) is the short-circuit current density, (V_{oc}) is the open-circuit voltage, and (FF) is the fill factor.

Fill Factor (FF) quantifies the "squareness" of the current density-voltage (J-V) curve and is calculated as: [ FF = \frac{P{max}}{J{sc} \times V{oc}} = \frac{J{mp} \times V{mp}}{J{sc} \times V{oc}} ] where (J{mp}) and (V_{mp}) are the current density and voltage at the maximum power point, respectively.

A high FF indicates low parasitic losses (series resistance, (Rs)) and high shunt resistance ((R{sh})), which are heavily influenced by electrode properties. The use of PEDOT:PSS as an electrode directly impacts these resistances and, consequently, the FF and overall PCE.

Table 1: Representative Performance Parameters of OSCs with PEDOT:PSS-based Electrodes vs. ITO

Device Architecture (Anode)	(J_{sc}) (mA/cm²)	(V_{oc}) (V)	FF (%)	PCE (%)	Reference Year	Notes
ITO/PEDOT:PSS (Standard)	18.5	0.85	72	11.3	2021	Baseline control
PEDOT:PSS-only (Flexible)	17.1	0.84	68	9.8	2022	High-conductivity formulation
PEDOT:PSS/Ag Grid	19.0	0.85	75	12.1	2023	Hybrid approach
ITO-free, PEDOT:PSS + Additive	16.8	0.86	71	10.2	2024	DMSO + surfactant treatment

Table 2: Impact of PEDOT:PSS Electrode Properties on FF-Limiting Factors

PEDOT:PSS Treatment	Sheet Resistance (Ω/sq)	Surface Roughness (RMS, nm)	Work Function (eV)	Typical (R_s) (Ω cm²)	Typical (R_{sh}) (Ω cm²)
As-spun	>1000	2-3	4.9-5.1	High	Low
DMSO (5%)	~200	~4	~5.0	Moderate	Moderate
H₂SO₄ Post-treatment	<50	8-12	~5.2	Low	High
EG + Zonyl	~80	~3	~4.9	Low	Moderate

Experimental Protocols

Protocol 1: Standard J-V Measurement for PCE and FF Determination

Objective: To accurately measure the current density-voltage characteristics of an OSC under simulated solar illumination to extract (J{sc}), (V{oc}), FF, and PCE.

Materials & Equipment:

• Solar cell simulator (Class AAA, AM 1.5G spectrum)
• Source measure unit (SMU, e.g., Keithley 2400)
• Calibrated silicon reference cell
• Optical power meter
• Light mask with precise aperture area
• Temperature-controlled stage (25°C)
• Device under test (OSC with PEDOT:PSS electrode)

Procedure:

• Calibration: Illuminate the calibrated reference cell with the solar simulator. Adjust the simulator's intensity until the reference cell's photocurrent matches its certified value under standard test conditions (STC: 100 mW/cm², AM 1.5G, 25°C). Record the light intensity.
• Aperture Alignment: Precisely align a non-reflective, opaque light mask with a known aperture area over the active area of the OSC device. This prevents overestimation of current from edge effects or light piping.
• Dark Measurement (Optional): In complete darkness, sweep the applied voltage from -1V to +1V (or beyond (V_{oc})) to measure the dark J-V curve. This helps identify shunt and series resistance.
• Light Measurement: Under the calibrated AM 1.5G illumination, perform a voltage sweep. A typical sweep for OSCs is from (V_{oc} + 0.2V) to (-0.2V) (reverse bias), with a step size of 10-20 mV and a delay time (e.g., 50 ms) to reach steady-state conditions.
• Data Acquisition: Record the applied voltage (V) and measured current (I). Convert current to current density (J) using the mask-defined aperture area: (J = I / Area).
• Calculation:
  • Identify (J{sc}) (J at V=0) and (V{oc}) (V where J=0).
  • Calculate the power density at each point: (P = J \times V).
  • Find (P{max}), the maximum value in the power density curve. The corresponding coordinates are (J{mp}) and (V_{mp}).
  • Calculate (FF = (J{mp} \times V{mp}) / (J{sc} \times V{oc})).
  • Calculate (PCE = (J{sc} \times V{oc} \times FF) / P{in}), where (P{in}) is the calibrated incident power density (e.g., 100 mW/cm²).

Protocol 2: Series and Shunt Resistance Extraction from J-V Curves

Objective: To quantify the series ((Rs)) and shunt ((R{sh})) resistances from J-V measurements, which are critical for diagnosing FF losses related to the PEDOT:PSS electrode.

Procedure:

• Obtain the light J-V curve as per Protocol 1.
• Shunt Resistance ((R{sh})): At a small reverse bias (e.g., -0.1 V to -0.2 V), the cell behaves like a resistor. (R{sh}) is estimated from the inverse slope of the J-V curve in this region: (R{sh} = \left| \frac{\Delta V}{\Delta J} \right|{near\ V=0,\ reverse\ bias}).
• Series Resistance ((Rs)): At high forward bias (near and beyond (V{oc})), the curve becomes linear. (Rs) is estimated from the inverse slope of the J-V curve in this region: (Rs = \left| \frac{\Delta V}{\Delta J} \right|{near\ and\ >V{oc}}).
• Impact of PEDOT:PSS: Low-conductivity or inhomogeneous PEDOT:PSS films increase (Rs). Pinholes or poor interfacial contact decrease (R{sh}). Optimizing PEDOT:PSS formulation and processing aims to minimize (Rs) and maximize (R{sh}).

Visualizations

Title: PCE and FF Analysis Workflow

Title: Factors Influencing Fill Factor

The Scientist's Toolkit: Research Reagent Solutions

Table 3: Essential Materials for OSC Fabrication with PEDOT:PSS Electrodes

Item (Product Example)	Function/Relevance to PCE & FF	Notes for PEDOT:PSS-based Electrodes
PEDOT:PSS Dispersion (Clevios PH1000)	The conductive polymer blend forming the transparent anode. Its conductivity, work function, and morphology set the baseline for (V{oc}), (Rs), and (R_{sh}).	High-conductivity grade is essential. Often modified with additives (DMSO, EG) to boost conductivity and tailor work function.
Conductivity Enhancers (Dimethyl Sulfoxide - DMSO)	Secondary dopant added to PEDOT:PSS (3-6% v/v). Realigns PEDOT chains, dramatically reducing sheet resistance, thereby lowering device (R_s) and improving FF.	Must be thoroughly mixed and filtered. Excess can degrade film formation.
Surfactant (Zonyl FS-300)	Fluorosurfactant added to PEDOT:PSS (<0.1% wt). Improves wetting on hydrophobic active layers, leading to more uniform films, better contact, and higher (R_{sh}).	Critical for achieving high-performance on non-ITO substrates like glass or PET.
Post-Treatment Solution (Sulfuric Acid, H₂SO₄, ~95%)	Removes excess PSS insulator from the film surface, significantly enhancing conductivity and work function. This directly optimizes (R_s) and charge extraction for higher FF.	Requires careful handling. Can increase surface roughness, which may impact interfacial contact.
Bulk Heterojunction Materials (e.g., PM6:Y6 blend)	The photoactive donor:acceptor system. Determines the fundamental (J{sc}), (V{oc}), and influences bulk charge transport, which interacts with electrode-induced (R_s).	Optimization must be re-calibrated when moving from ITO to PEDOT:PSS anodes due to different work functions and surfaces.
Electron Transport Layer (e.g., PDINO)	Facilitates selective electron collection at the cathode, balancing charge extraction to maximize (J_{sc}) and FF.	Choice and thickness can compensate for non-ideal anode properties to some extent.
High-Purity Solvents (Chloroform, o-Xylene)	Used for dissolving and processing the active layer. Purity is critical for reproducible morphology, which affects all performance parameters.	Solvent orthogonal to the underlying PEDOT:PSS layer is required to prevent damage during top-layer deposition.

Application Notes: PEDOT:PSS Electrodes in Flexible Organic Solar Cells

1. Introduction & Thesis Context Within the broader thesis on PEDOT:PSS as a transparent electrode for Organic Solar Cells (OSCs), a critical sub-hypothesis asserts that optimized PEDOT:PSS formulations possess an inherent flexibility and durability advantage over conventional brittle metal-oxide electrodes (e.g., ITO). This advantage is paramount for the development of next-generation wearable, portable, and biomedical-integrated photovoltaics. These application notes detail standardized protocols and present quantitative data from mechanical bending tests, establishing a benchmark for evaluating electrode robustness in flexible OSC research.

2. Key Research Reagent Solutions & Materials

Item	Function / Explanation
PEDOT:PSS Dispersion (e.g., PH1000)	The conductive polymer blend. Acts as the primary electrode material. Additives are incorporated to enhance conductivity and mechanical properties.
Dimethyl Sulfoxide (DMSO) / Ethylene Glycol	Conductivity-enhancing additives. They reorient PEDOT chains and remove insulating PSS, improving electrical performance.
Zonyl FS-300 / Triton X-100	Surfactants and wetting agents. Improve film-forming uniformity and adhesion to flexible substrates, critical for durability.
(3-Glycidyloxypropyl)trimethoxysilane (GOPS)	Cross-linking agent. Forms covalent bonds within the PEDOT:PSS matrix, drastically enhancing mechanical robustness and water resistance.
Polyethylene Terephthalate (PET) / Polyimide (PI) Substrate	Flexible, transparent plastic films. Serve as the supporting substrate, replacing rigid glass.
Polyurethane Acrylate (PUA) or Silicone-based Encapsulant	Protective top layer. Shields the OSC from moisture and oxygen ingress, and can provide additional mechanical stress relief.

3. Experimental Protocols

Protocol 3.1: Preparation of Optimized, Durable PEDOT:PSS Electrodes

• Solution Formulation: To commercially available PEDOT:PSS (e.g., Clevios PH1000), add 5% v/v DMSO and 1% v/w GOPS. For enhanced wetting, add 0.1% v/v Zonyl FS-300.
• Mixing: Stir the solution magnetically for a minimum of 24 hours at room temperature to ensure homogeneous mixing and pre-crosslinking.
• Deposition: Filter the solution through a 0.45 μm PVDF syringe filter. Deposit onto a cleaned, oxygen-plasma-treated PET substrate via spin-coating (e.g., 3000 rpm for 60 sec) or slot-die coating for larger areas.
• Curing: Anneal the film on a hotplate at 140°C for 15 minutes. This step evaporates water, promotes phase separation, and completes the GOPS cross-linking reaction, forming a robust network.

Protocol 3.2: Static Bending Test for Critical Radius Determination

• Sample Preparation: Fabricate complete OSC devices or isolated electrode films on PET substrates. Cut into strips of defined dimensions (e.g., 20 mm x 5 mm).
• Test Setup: Mount cylindrical mandrels of decreasing radii (R) to a stable platform.
• Procedure: Gently wrap the sample strip around a mandrel, conductive layer facing outward (tensile stress) or inward (compressive stress). Hold for 60 seconds.
• Measurement: Unwrap and immediately measure the sheet resistance (Rs) using a four-point probe.
• Analysis: Determine the Critical Bending Radius (R_crit) as the smallest radius at which ΔRs/Rs₀ (change in resistance) remains below 10%. Perform a minimum of n=5 samples per radius.

Protocol 3.3: Dynamic Cyclic Bending Fatigue Test

• Apparatus: Utilize a motorized cyclic bending tester (e.g., custom or commercial fatigue stage).
• Mounting: Clamp both ends of the sample strip, leaving a defined free length. For in-situ monitoring, connect probes to a multimeter/data logger.
• Test Parameters: Set bending radius (e.g., R = 5 mm), bending frequency (e.g., 1 Hz), and total cycle target (e.g., 10,000 cycles). Standardize the bending mode (outward/inward).
• Monitoring: Record Rs at predefined cycle intervals (1, 10, 100, 500, 1000, etc.).
• Endpoint: The test concludes at the target cycle count or upon device failure (defined as ΔRs/Rs₀ > 100% or open circuit).

4. Quantitative Data Summary

Table 1: Bending Test Results for Various Transparent Electrodes

Electrode Type	Substrate	Critical Radius (R_crit) [mm]	Resistance Increase (ΔR/R₀) after 1000 cycles @ R=5mm	Initial Sheet Resistance (Rs₀) [Ω/sq]	Reference (Typical)
ITO (Reference)	PET	~5 - 8	> 1000% (Catastrophic failure)	~50 - 100	Standard benchmark
PEDOT:PSS (Basic)	PET	~2 - 3	~250%	~200 - 500	Baseline polymer
PEDOT:PSS + GOPS	PET	< 1	< 20%	~80 - 150	Cross-linked, durable
Ag Nanowire Mesh	PET	~1 - 2	~50 - 150% (Variable)	~20 - 50	Alternative flexible electrode

Table 2: Mechanical Properties of PEDOT:PSS Films with Additives

Film Formulation	Tensile Strain at Fracture (%)	Elastic Modulus (GPa)	Conductivity (S/cm)	Key Characteristic
Pristine PEDOT:PSS	~5 - 10	~2 - 3	~0.5 - 1	Brittle, insulating matrix
+ DMSO/Sorbitol	~15 - 25	~1.5 - 2	~400 - 800	Ductile, conductive
+ GOPS (3% w/w)	> 50	~1 - 1.8	~200 - 600	Highly stretchable, robust
+ Ionic Liquid	~20 - 35	~1 - 2	~800 - 1000	Highly conductive, moderately flexible

5. Visualization of Workflow and Structure-Property Relationship

Workflow for Fabricating Robust PEDOT:PSS Electrode

How GOPS Cross-linking Enhances Mechanical Durability

This application note provides a framework for assessing the economic viability of roll-to-roll (R2R) manufacturing of organic solar cells (OSCs), specifically within the thesis research context of utilizing PEDOT:PSS as a high-performance, solution-processable transparent electrode. Transitioning from lab-scale spin-coating to high-throughput R2R processing is critical for commercializing OSCs. This document outlines protocols for cost component analysis, scalability assessment, and key experimental validation steps necessary for robust techno-economic analysis.

Key Cost Components in R2R Manufacturing of PEDOT:PSS-based OSCs

The total cost per watt-peak ($/Wp) is dictated by materials, processing, capital investment, and operational expenses. Below is a breakdown of primary cost drivers.

Table 1: Major Cost Components in R2R OSC Manufacturing

Cost Category	Specific Item/Process	Key Considerations for PEDOT:PSS Electrode	Typical % of Module Cost
Materials (Substrate & Active Layers)	Flexible substrate (e.g., PET), PEDOT:PSS ink, photoactive layer (donor:acceptor), hole/electron transport layers, back electrode.	Conductivity enhancers (e.g., DMSO, surfactants) for PEDOT:PSS add cost; ink formulation stability is critical for low waste.	40-60%
R2R Processing	Coating (slot-die, gravure), drying, patterning, lamination, encapsulation.	Coating speed, uniformity, and yield directly impact throughput. PEDOT:PSS requires mild drying (<150°C) compatible with PET.	20-30%
Capital & Depreciation	R2R coater, dryers, patterners (laser, R2R printing), testers, clean room environment.	High initial CapEx demands high utilization rates for cost amortization.	15-25%
Operational & Labor	Energy, maintenance, quality control, skilled labor.	Energy for drying and climate control is significant. In-line optical monitoring essential for yield.	10-20%

Experimental Protocols for Scalability and Cost Assessment

Protocol 3.1: R2R Slot-Die Coating of PEDOT:PSS Electrodes

• Objective: To deposit uniform, high-conductivity PEDOT:PSS films on flexible PET web at pilot-scale speeds.
• Materials & Pre-Treatment:
  • Substrate: 300mm wide, 125µm thick PET web, pre-cleaned via R2R plasma treatment (Ar/O2, 300W, 1 m/min).
  • Ink: High-conductivity grade PEDOT:PSS (e.g., Heraeus Clevios PH1000), modified with 5% v/v DMSO and 0.1% v/v Zonyl FS-300 fluorosurfactant.
  • Equipment: R2R slot-die coater with precision syringe pump, in-line infrared dryer, and thickness monitor.
• Procedure:
  • Mount and thread the PET web through the coater, dryer, and rewinder.
  • Filter (0.45 µm PVDF) the PEDOT:PSS ink and load into the syringe pump.
  • Set initial coating parameters: Web speed = 0.5 m/min, pump rate = 0.5 mL/min, coating gap = 150 µm.
  • Initiate coating. Use in-line camera for wetting inspection.
  • Pass the wet film directly into a 3-zone IR dryer (80°C, 100°C, 120°C) with 2m dwell length.
  • Collect the coated web. Measure sheet resistance (4-point probe) and film thickness (profilometer) at 1m intervals.
  • Iteratively optimize speed (target >2 m/min) and dryer settings for Rs < 100 Ω/sq and thickness ~100 nm.

Protocol 3.2: In-Line Quality Control and Yield Analysis

• Objective: To determine production yield and identify major defect modes impacting cost.
• Setup: Integrate an in-line optical transmission/reflection scanner and a contactless conductance mapping system post-drying zone.
• Procedure:
  • Process a 100m roll of PET using optimized parameters from Protocol 3.1.
  • Program the inspection systems to flag areas where: a) Optical density varies by >±5% from target, b) Sheet resistance >150 Ω/sq.
  • Map all defects and categorize (e.g., coating streaks, drying marks, particulate contamination).
  • Calculate yield: Yield (%) = [Total Length - (Sum of Defect Lengths)] / Total Length * 100.
  • Correlate specific defect types with process step (coating, drying, handling) for root-cause correction.

Protocol 3.3: Techno-Economic Modeling for Cost per Watt Projection

• Objective: To project manufacturing cost ($/m² and $/Wp) at various production volumes.
• Input Data Collection:
  • Material Costs: Obtain quotes from suppliers for all inks and substrate at 1,000m² and 100,000m² annual volumes.
  • Process Data: From Protocols 3.1 & 3.2, determine maximum web speed (m/min), coating width (m), yield (%), and material utilization (%).
  • Performance Data: Measure power conversion efficiency (PCE) of completed R2R OSC mini-modules (e.g., 0.01m² active area).
• Modeling Steps:
  • Calculate Throughput: Area/Hour = Web Speed (m/min) * Width (m) * 60 min * Yield.
  • Calculate Material Cost per Area: Sum of all material costs per m² of coated web.
  • Estimate Capital Depreciation per Area: (Total CapEx / Equipment Lifetime in Hours) / Throughput (m²/Hour).
  • Sum energy, labor, and overhead costs per area.
  • Total Cost per m² = Sum of (Material, Depreciation, Operational) costs.
  • Calculate $/Wp: Cost per m² / (1000 W/m² * PCE / 100). Assume standard AM1.5G illumination (1000 W/m²).

The Scientist's Toolkit: Research Reagent Solutions

Table 2: Essential Materials for R2R OSC Research

Item	Function & Relevance to PEDOT:PSS & R2R
Clevios PH1000 (Heraeus)	Industry-standard high-conductivity PEDOT:PSS dispersion. Base material for transparent anode.
DMSO (Dimethyl Sulfoxide)	Common secondary dopant for PEDOT:PSS. Increases conductivity by orders of magnitude via molecular rearrangement.
Zonyl FS-300 (Chemours)	Fluorosurfactant. Improves wetting and leveling of PEDOT:PSS ink on low-energy PET substrates, crucial for uniform R2R coating.
PET (Polyethylene Terephthalate) Web	Standard flexible, low-cost substrate. Must be heat-stabilized to withstand processing temperatures (<150°C).
R2R Plasma Cleaner	For surface activation. Increases PET surface energy, ensuring excellent adhesion and uniformity of the first coated layer (PEDOT:PSS).
Slot-Die Coating Head	Precision coating tool for depositing multiple layers in a pre-metered, low-waste manner. Key for translating lab recipes to R2R.

Visualizations

Title: Research Pathway to Economic Viability Assessment

Title: R2R Coating and Optimization Workflow

Title: Hierarchical Cost Structure Breakdown

Application Notes

The selection of a transparent conductive electrode (TCE) for organic solar cells (OSCs) requires balancing optical transmittance, electrical conductivity, surface roughness, chemical stability, and processing compatibility. PEDOT:PSS offers a unique combination of solution processability and mechanical flexibility but is benchmarked against other prominent alternatives.

Table 1: Comparative Quantitative Metrics of TCEs for OSCs

Electrode Type	Typical Sheet Resistance (Ω/sq)	Typical Optical Transmittance (%) @550 nm	Surface Roughness (RMS, nm)	Work Function (eV)	Flexibility (Bending Radius)
PEDOT:PSS (pristine)	10^2 - 10^3	85 - 95	1 - 3	4.9 - 5.2	Excellent (<1 mm)
PEDOT:PSS (formulated)	10^1 - 10^2	80 - 90	2 - 5	4.8 - 5.3	Excellent (<1 mm)
Metal Grids (Ag)	1 - 20	70 - 90 (depends on fill factor)	50 - 200	~4.3	Poor to Moderate
Silver Nanowires (AgNWs)	10 - 50	85 - 95	10 - 50	~4.7	Good (<3 mm)
Graphene (CVD)	100 - 1000	90 - 97.7	0.3 - 1	~4.5	Good (<5 mm)

Table 2: OSC Performance with Different TCEs (Current State-of-the-Art)

Electrode Type	OSC Type	PCE (%)	Jsc (mA/cm²)	Voc (V)	FF (%)	Key Reference Year
PEDOT:PSS (DMSO)	PM6:Y6	16.5	25.3	0.84	77.8	2023
Metal Grid/ITO Hybrid	PM6:Y6	15.8	24.1	0.85	77.0	2022
AgNWs (etched)	PTB7-Th:O6T-4F	12.8	21.5	0.80	74.5	2024
Graphene (doped)	P3HT:ICBA	9.1	15.2	0.82	73.0	2023

Application-Specific Positioning

• PEDOT:PSS is optimal for highly flexible, all-solution-processed OSC devices where thermal and chemical stability of the underlying layers is a concern. Its work function is easily tunable for improved hole collection.
• Metal Grids are best suited for rigid, large-area modules where ultra-low sheet resistance is paramount, and shadowing losses can be managed by grid design.
• Silver Nanowires provide a strong alternative for flexible electronics but face challenges with long-term stability due to junction resistance, oxidation, and thermal migration.
• Graphene excels in applications requiring supreme chemical inertness, atomic smoothness, and optical clarity, though doping remains critical for competitive conductivity.

Experimental Protocols

Protocol 1: High-Conductivity PEDOT:PSS Electrode Formulation & Deposition

Objective: To prepare and characterize a highly conductive, smooth PEDOT:PSS film for use as an anode in OSCs.

Materials: See "The Scientist's Toolkit" below.

Procedure:

• Solution Formulation: Mix 10 mL of commercial PEDOT:PSS aqueous dispersion (e.g., PH1000) with 1 mL of ethylene glycol (5% v/v) and 50 μL of (3-Glycidyloxypropyl)trimethoxysilane (GOPS) as a cross-linker.
• Doping: Stir the mixture vigorously for 1 hour at room temperature.
• Filtration: Filter the solution through a 0.45 μm PVDF syringe filter directly before deposition.
• Deposition: Clean the substrate (e.g., glass, PET) with sequential sonication in detergent, deionized water, acetone, and isopropanol (15 min each). Treat with UV-Ozone for 15 minutes.
  • Spin-Coating: Deposit 200 μL of the formulated solution and spin at 3000 rpm for 60 sec.
  • Blade-Coating (for large area): Use a blade height of 150 μm and a coating speed of 10 mm/s on a heated substrate (40°C).
• Post-Treatment: Immediately after deposition, anneal the film on a hotplate at 140°C for 15 minutes.
• Characterization: Measure sheet resistance with a four-point probe, transmittance with a UV-Vis spectrometer (normalized to substrate), and surface morphology with AFM.

Protocol 2: Comparative OSC Fabrication with Different TCEs

Objective: To fabricate and test standard OSC devices with different transparent electrodes under identical active layer conditions.

Procedure (PM6:Y6 Active Layer Example):

• TCE Preparation: Prepare four sets of identical substrates with:
  • Set A: Formulated PEDOT:PSS (from Protocol 1).
  • Set B: Commercially purchased AgNW ink, spin-coated and sintered at 120°C.
  • Set C: Patterned Ag grids (e.g., via inkjet printing) with a thin PEDOT:PSS overcoat.
  • Set D: CVD graphene transferred onto substrate and doped with HNO₃ vapor.
• Hole Transport Layer (HTL) Deposition: For sets B, C, D, deposit a thin layer (~30 nm) of neutral PEDOT:PSS (Al 4083) to planarize and improve work function match. Set A already functions as the HTL.
• Active Layer Deposition: Prepare a solution of PM6:Y6 (1:1.2 w/w) in chloroform with 0.5% v/v 1-chloronaphthalene (total conc. 16 mg/mL). Spin-coat at 2500 rpm for 30s in a nitrogen glovebox to achieve an ~100 nm film. Anneal at 100°C for 10 min.
• Electron Transport Layer (ETL) Deposition: Spin-coat a thin layer (~5 nm) of PFN-Br methanol solution (0.5 mg/mL) at 3000 rpm for 30s.
• Cathode Evaporation: Transfer the samples to a thermal evaporation chamber. Deposit 100 nm of Al at a pressure < 5x10⁻⁶ Torr through a shadow mask to define active areas (typically 0.04 - 0.1 cm²).
• Device Testing: Characterize J-V characteristics under AM 1.5G illumination (100 mW/cm²) using a solar simulator and a calibrated Si reference cell. Perform EQE measurements.

Diagrams

Title: Logical Selection Flow for OSC Transparent Electrodes

Title: Generic OSC Fabrication Workflow with TCE Variations

The Scientist's Toolkit: Research Reagent Solutions for TCE Development

Item Name (Example)	Function in TCE Research	Key Property / Note
Clevios PH1000	Commercial PEDOT:PSS dispersion. Base material for conductive polymer electrodes.	High conductivity grade. Aqueous dispersion.
Ethylene Glycol (EG)	Secondary dopant for PEDOT:PSS. Enhances conductivity by phase separation and conformational change.	Polar solvent, improves carrier mobility.
GOPS	Cross-linking agent for PEDOT:PSS. Improves water/chemical resistance and adhesion.	(3-Glycidyloxypropyl)trimethoxysilane.
AgNW Ink (e.g., Blue Nano)	Ready-to-use dispersion of silver nanowires for solution-processed electrodes.	Specified by diameter (e.g., 30 nm), length (e.g., 20 μm), and concentration.
CVD Graphene on Cu foil	Source for transfer-ready monolayer graphene films.	Requires wet transfer process (PMMA-assisted).
Nitric Acid (HNO₃), 65%	Oxidizing agent for p-type doping of graphene. Applied via vapor exposure.	Caution: Highly corrosive. Use in fume hood.
PFN-Br	Polymer-based electron transport layer. Improves electron collection and modifies interface.	Poly[(9,9-bis(3'-(N,N-dimethylamino)propyl)-2,7-fluorene)-alt-2,7-(9,9-dioctylfluorene)] dibromide.
Chloroform with CN	Solvent system for high-performance non-fullerene acceptor blends (e.g., PM6:Y6).	1-Chloronaphthalene (CN) is a high-boiling-point additive that optimizes morphology.

Conclusion

PEDOT:PSS has firmly established itself as a versatile and high-performance alternative to brittle, costly ITO for transparent electrodes in OSCs. Its strengths lie in inherent mechanical flexibility, excellent work function compatibility, and facile, low-temperature processability, which are paramount for flexible and large-area photovoltaic applications. While challenges remain in achieving ultimate conductivity and long-term stability, ongoing research into secondary doping, composite formation, and advanced encapsulation provides clear pathways for improvement. The validated performance, especially in flexible device formats, positions PEDOT:PSS not just as a replacement material but as a key enabler for the next generation of lightweight, wearable, and architecturally integrated solar energy solutions. Future directions should focus on developing universally standardized, environmentally stable formulations and integrating them with emerging non-fullerene acceptors to unlock the full potential of all-organic, fully printable solar cells.
